Argo Media (AM) Linear Direct View for Argo Media (AM) Linear Direct View for
Argo Media (AM)

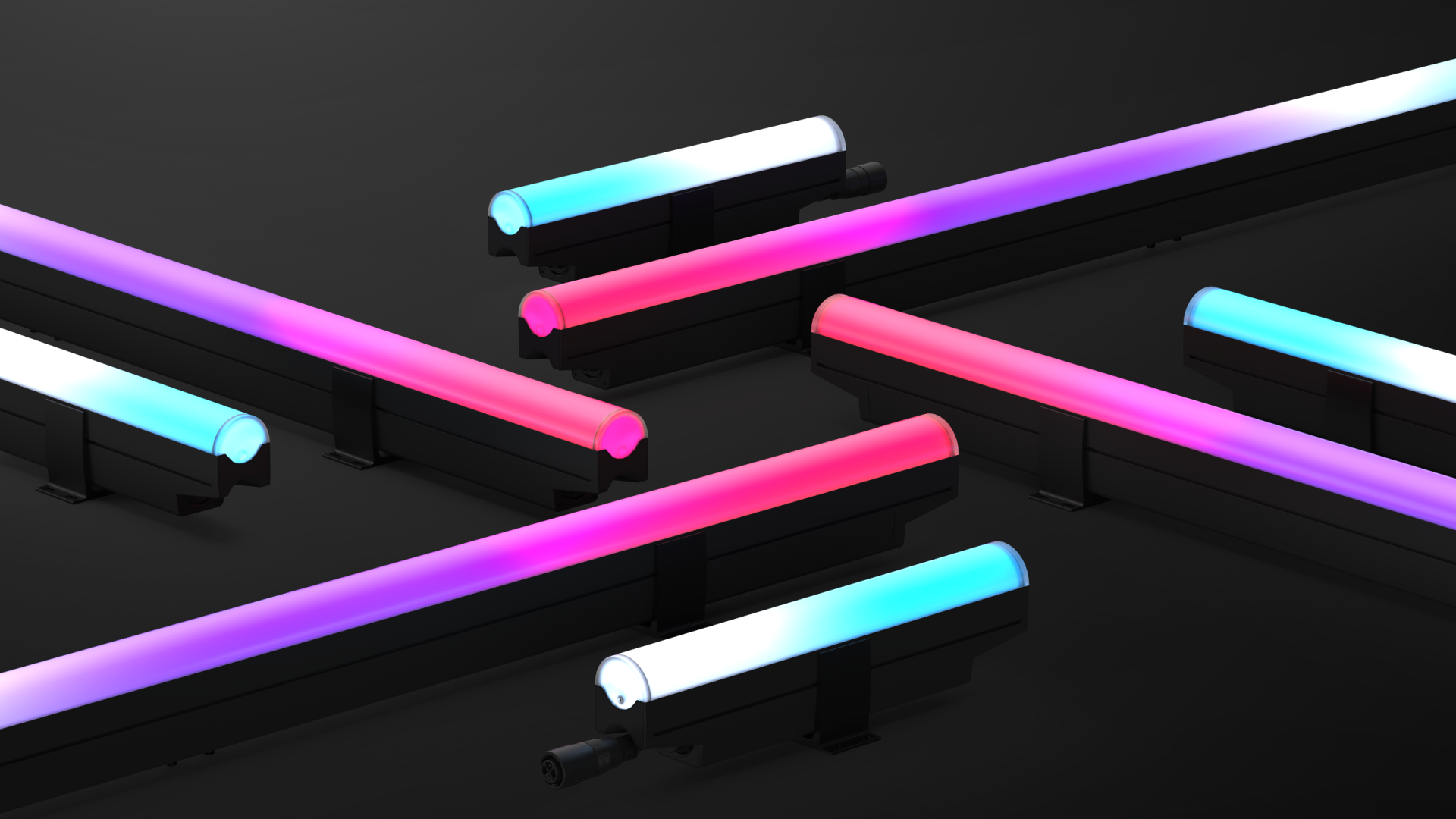

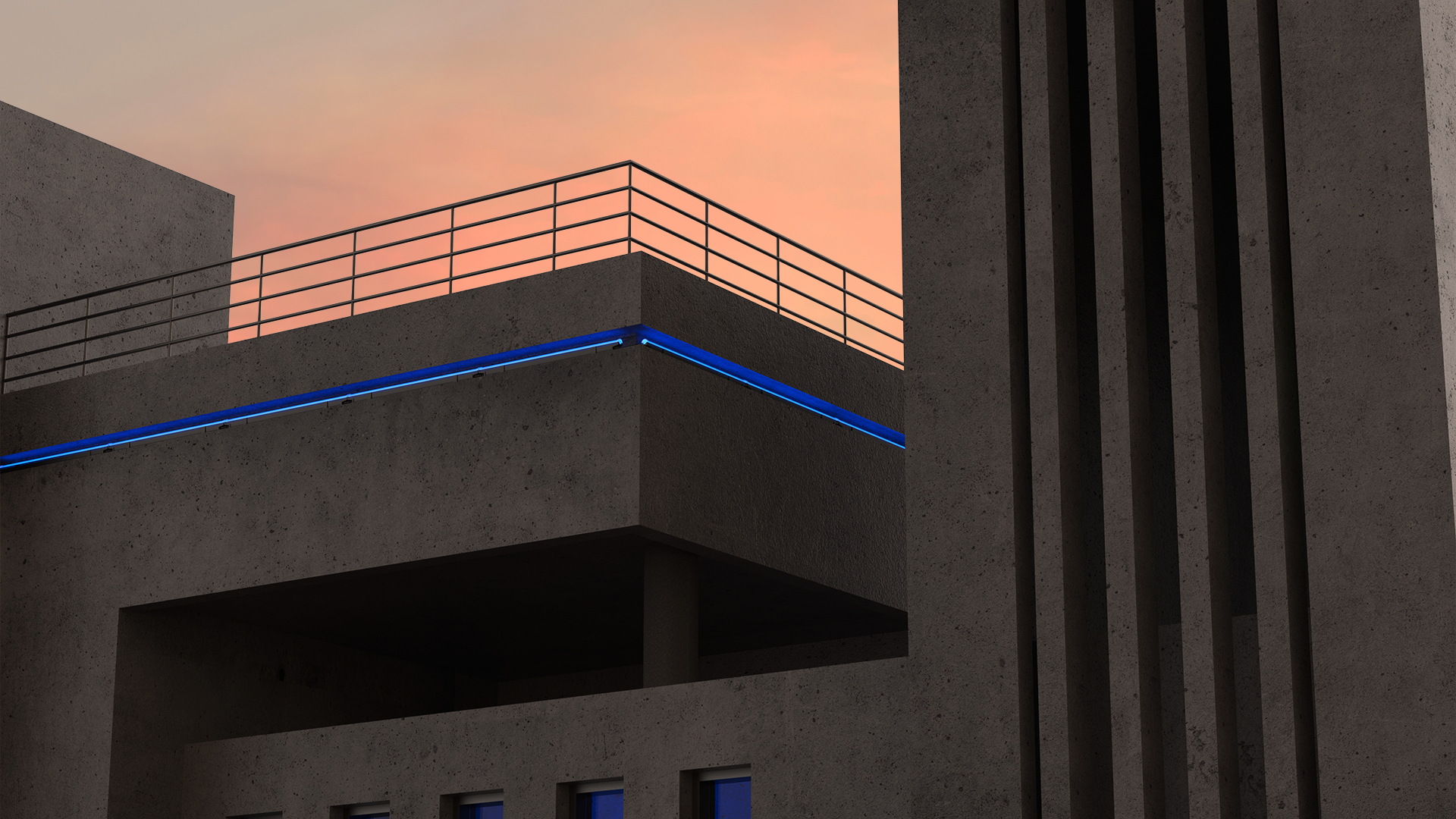

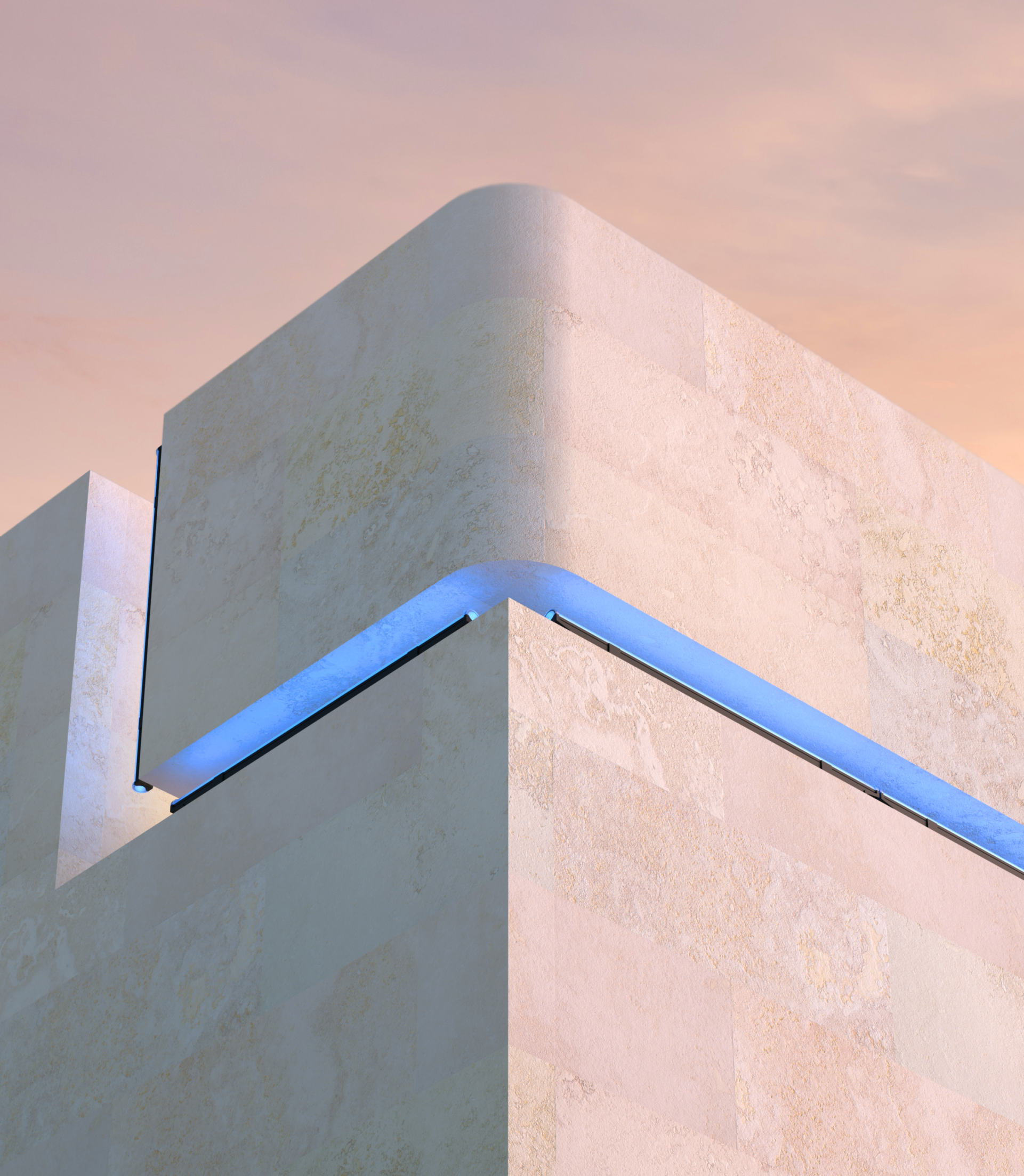

Linear direct view lighting for exterior applications.
Featuring Patented Quad Chip Technology. Powered by Nitro Color.

Product Family: Linear (Exterior)

Share this product page
Facebook Twitter LinkedIn Email Pinterest

  • Output:

    5 W/Ft

  • Optical Distribution:

    Direct View
    130° Viewing Angle

  • LED Configurations:

    RGB-AMBER, RGB22K-RGB40K,
    RG-Royal Blue-30K,
    RG-Royal Blue-40K

  • Performance:

    Up To 21.9 LM/W, 106.4 Lumens, 26.4 Peak Candela

  • Power:

    120VAC, 277VAC

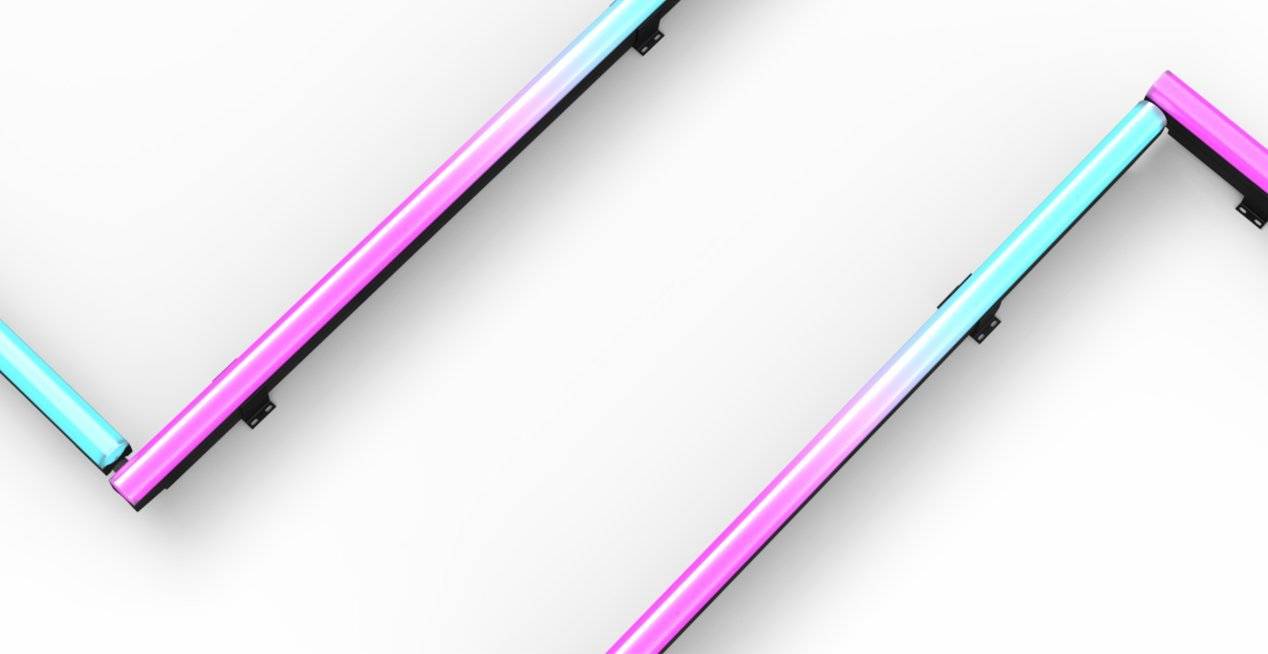

    380VDC - Remote MARATHON Driver

  • Control:

    DMX+RDM

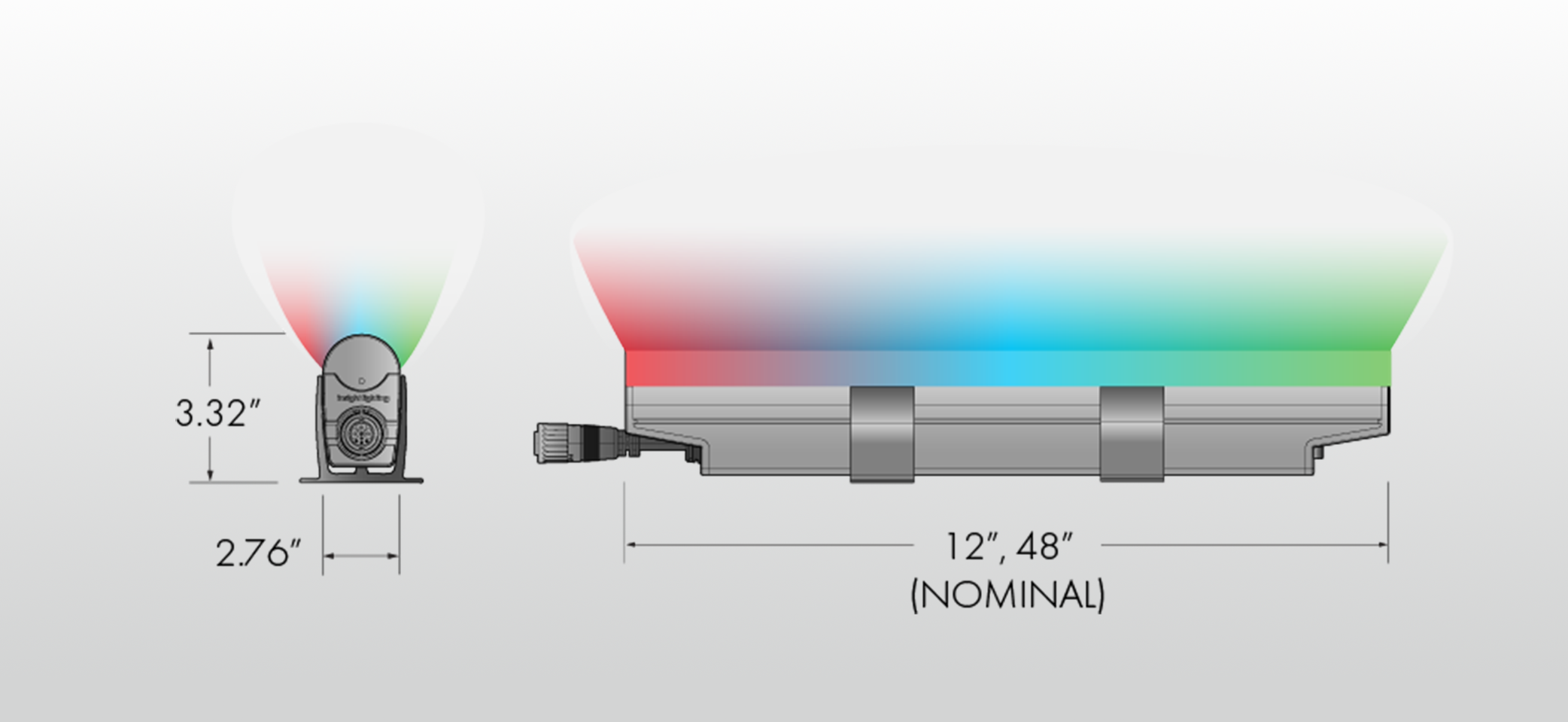

  • Fixture Lengths"

    12", 48"

  • Weight:

    12": 1.25 LBS, 48": 3.70 LBS

  • Housing/Lens

    Co-extruded, UL 94 5VA thermoplastic

  • Finish:

    Matte Black

  • Warranty:

    5-Year Limited

  • Operating Temp:

    -20° C To 50° C

  • Lumen Maintenance:

    75,000 Hours

  • Certification:

    IP67, IK07, 3G

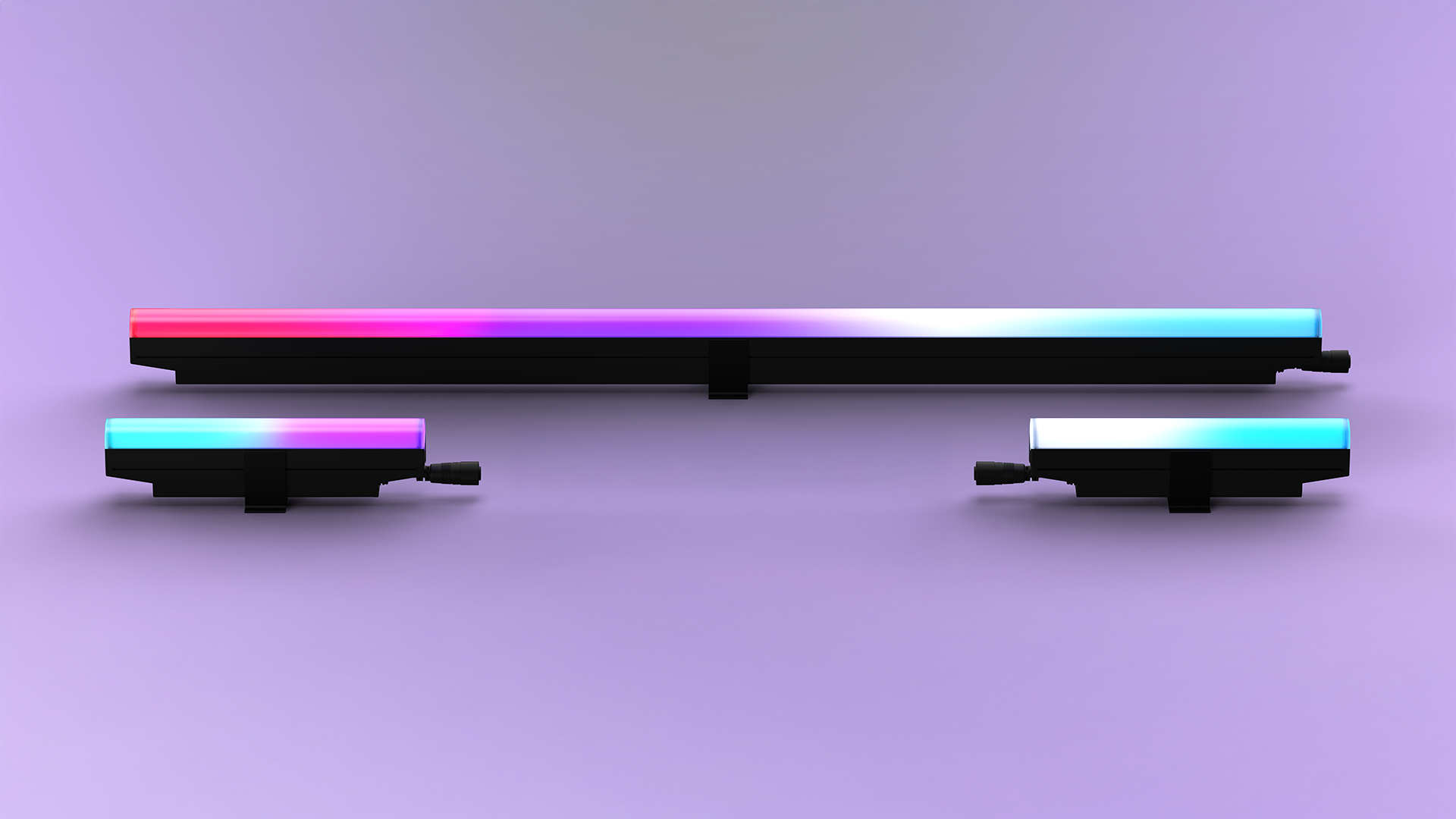

Product Image
