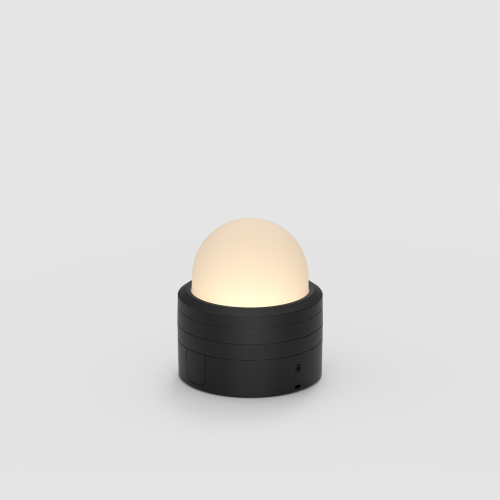

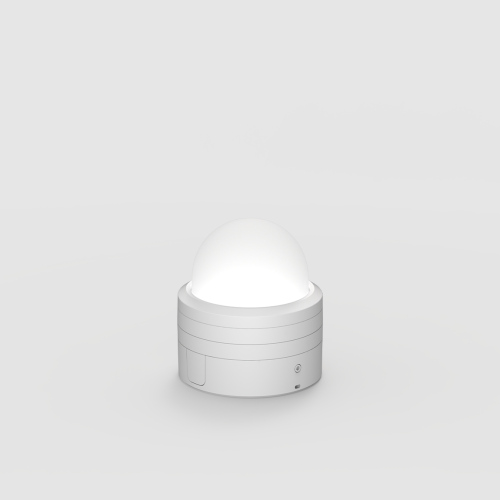

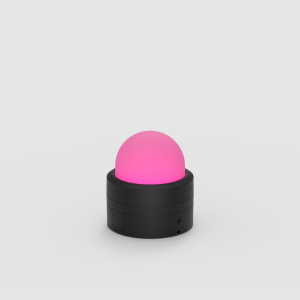

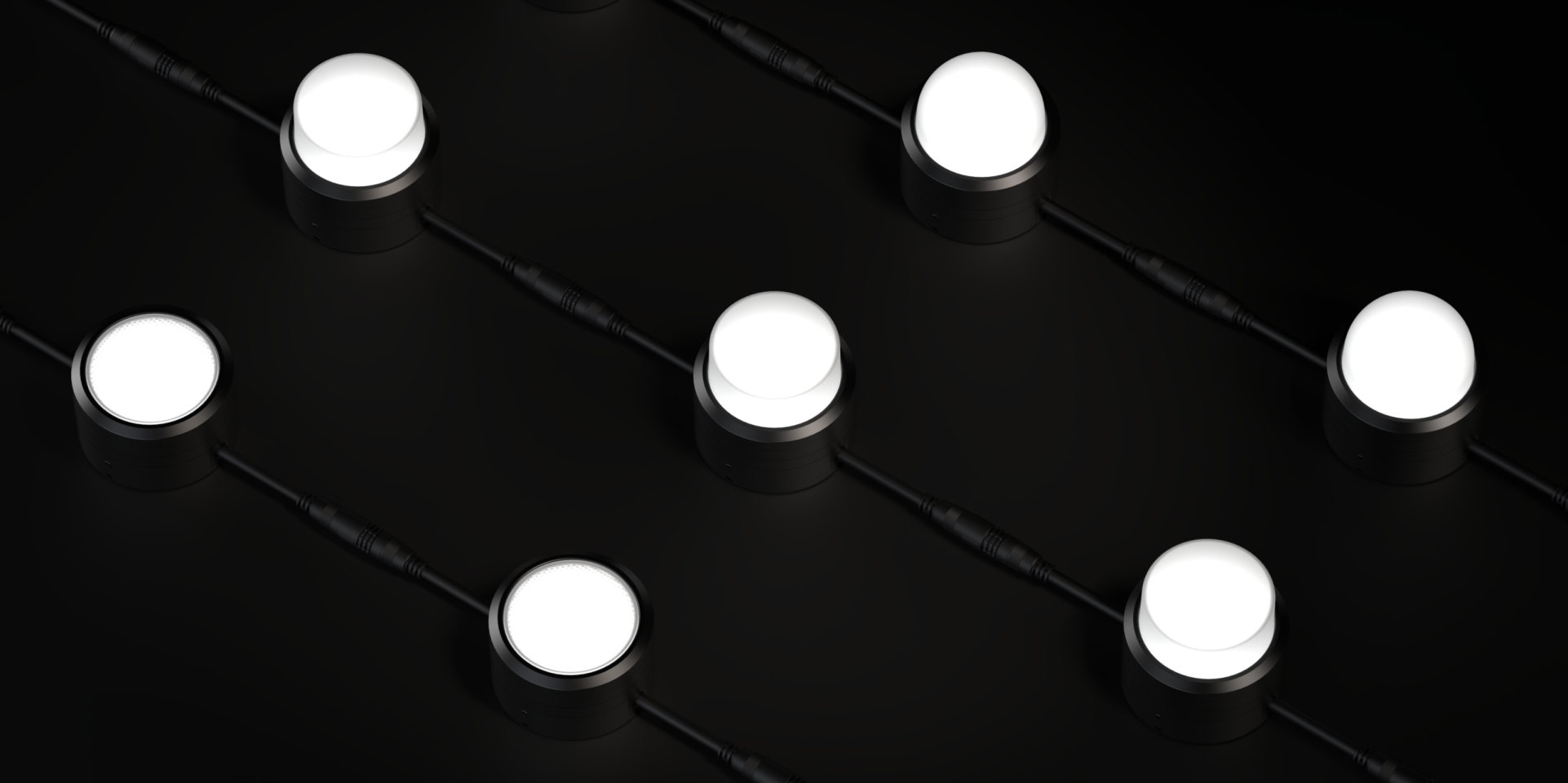

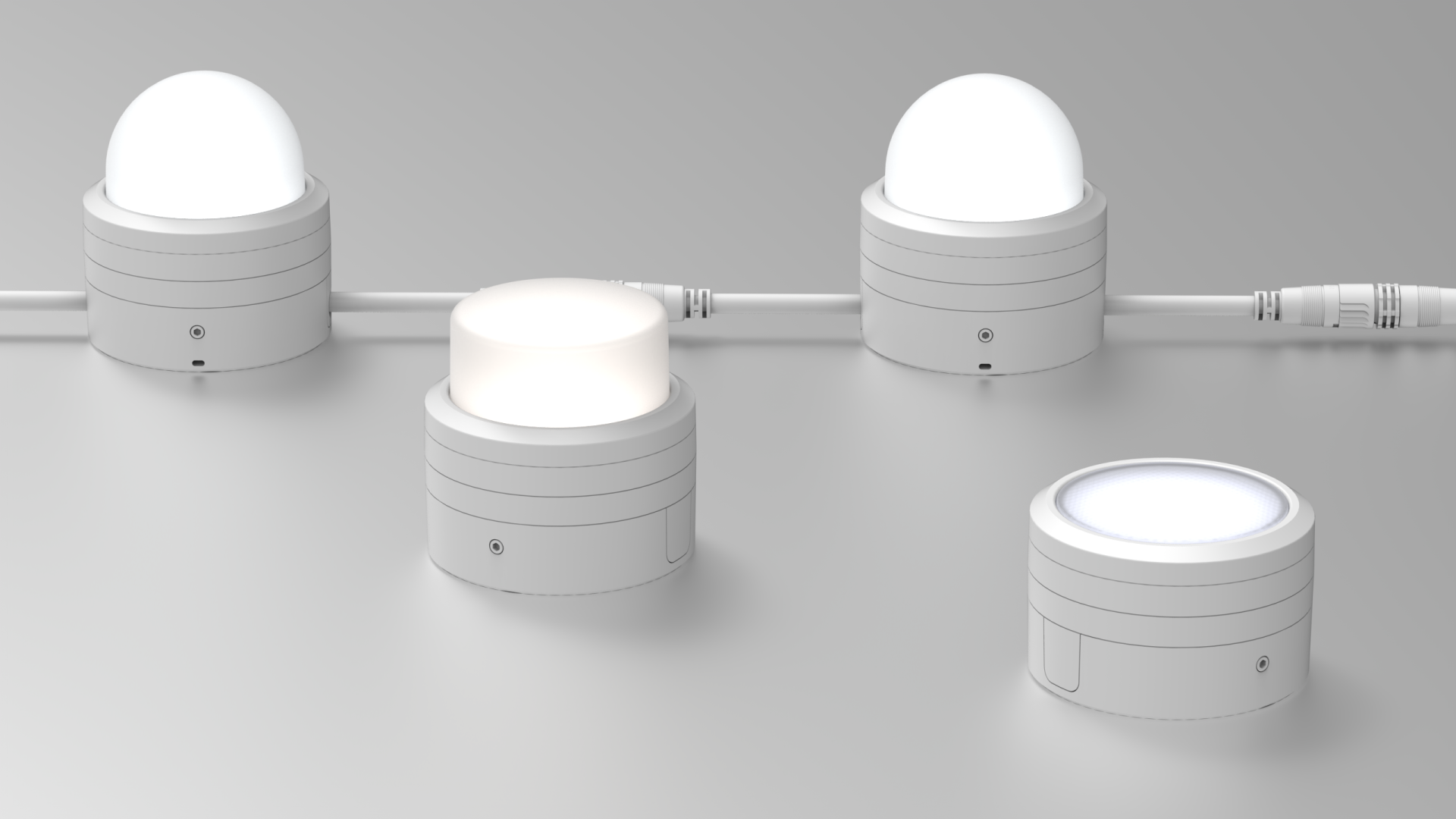

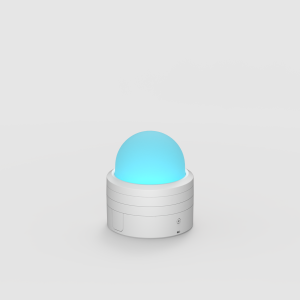

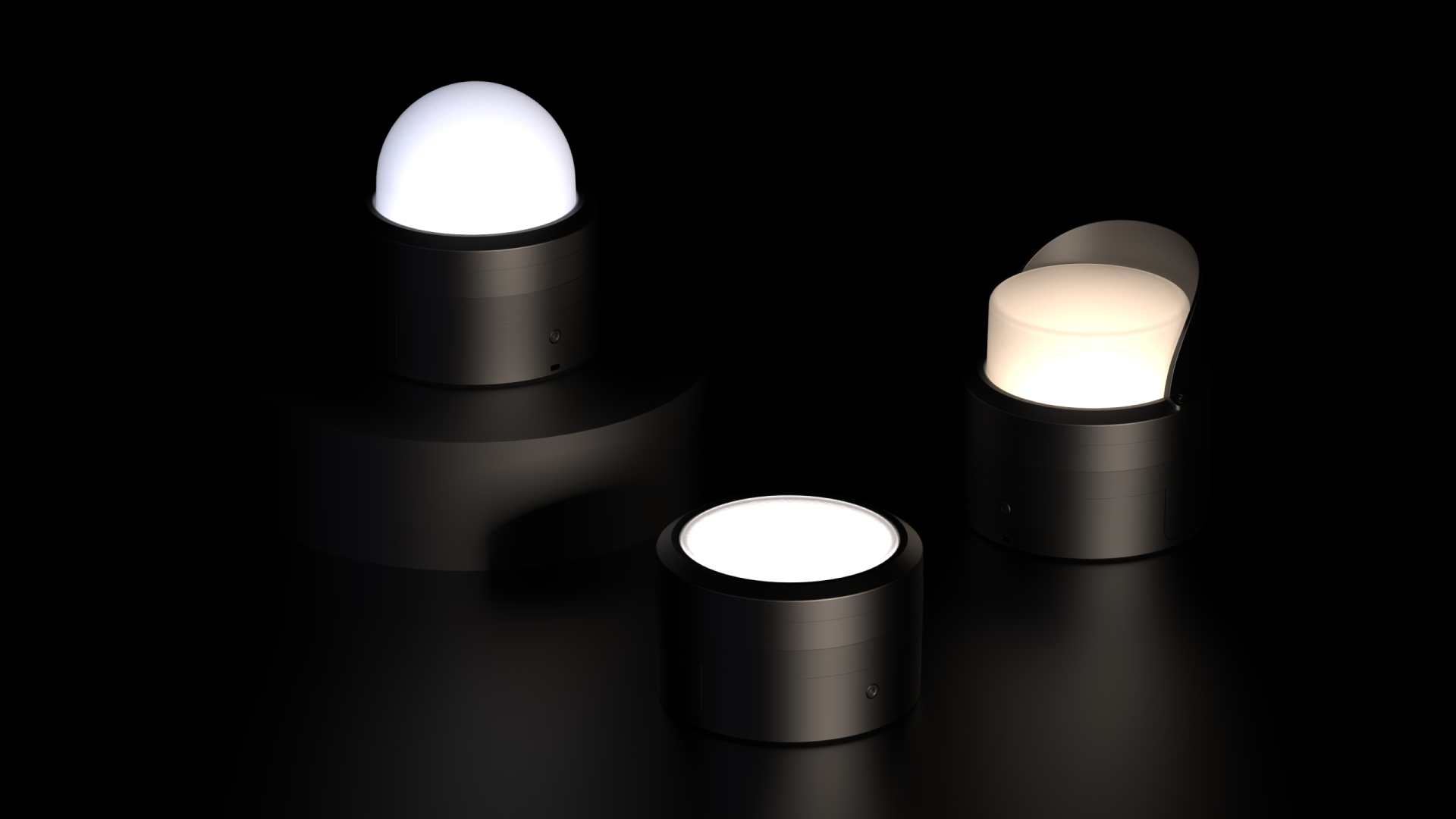

Argo Media Dot (DOT)
A high-performance direct-view LED Pixel fixture for exterior applications.
Product Family: Direct-View-Media
Certifications & Compliance: Turtle-Friendly
Share this product page
-
Output:
LO (3W), MO (6W)
HO (9W), VO (12W) -
Optics:
Direct View
-
White CCT:
22K, 27K, 30K, 35K, 40K
Tunable White (22K-65K) -
Static Color:
Red, Blue, Green, Amber
-
Voltage:
Universal (120V, 240V, 277V)
-
Power:
Integral Power Supply
-
Cable Color:
Black, White Option
-
Control:
0-10V, DMX, DALI
-
Weight:
Plug and Play: 3.05 LBS
W/Visor 3.25 LBS -
EPA:
Front Dome: 0.103 FT2
Side Dome: 0.081 FT2 -
Housing:
Heavy Duty A380
Die-Cast Aluminum -
Lens:
Injection Molded
Polycarbonate Lens -
Finish:
High Durability
Powder Coating -
Operating Temp
-40° C TO 50° C
-
Lumen Maintenance:
100,000 Hours
-
Certification:
ETL , cETL, IP66, 3G
-
Warranty
5-Year Limited

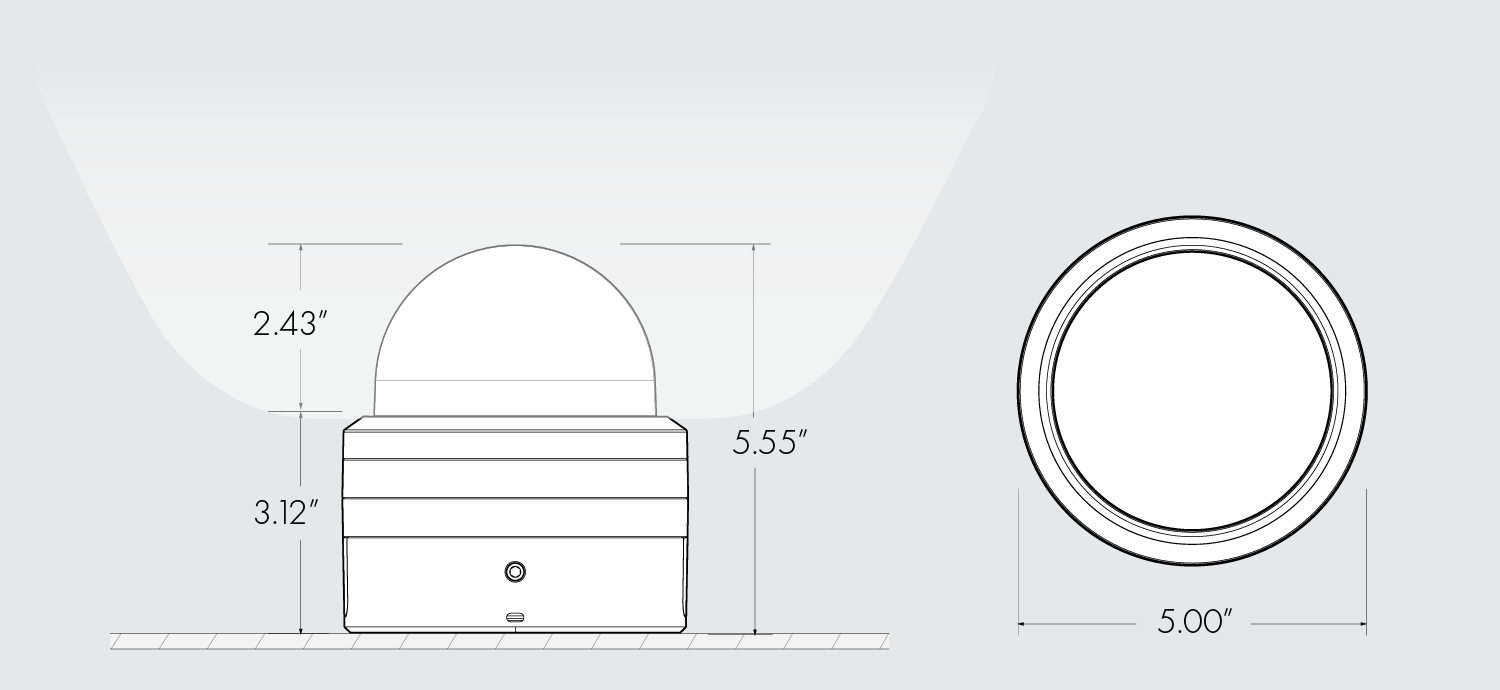

J-box mount dome lens

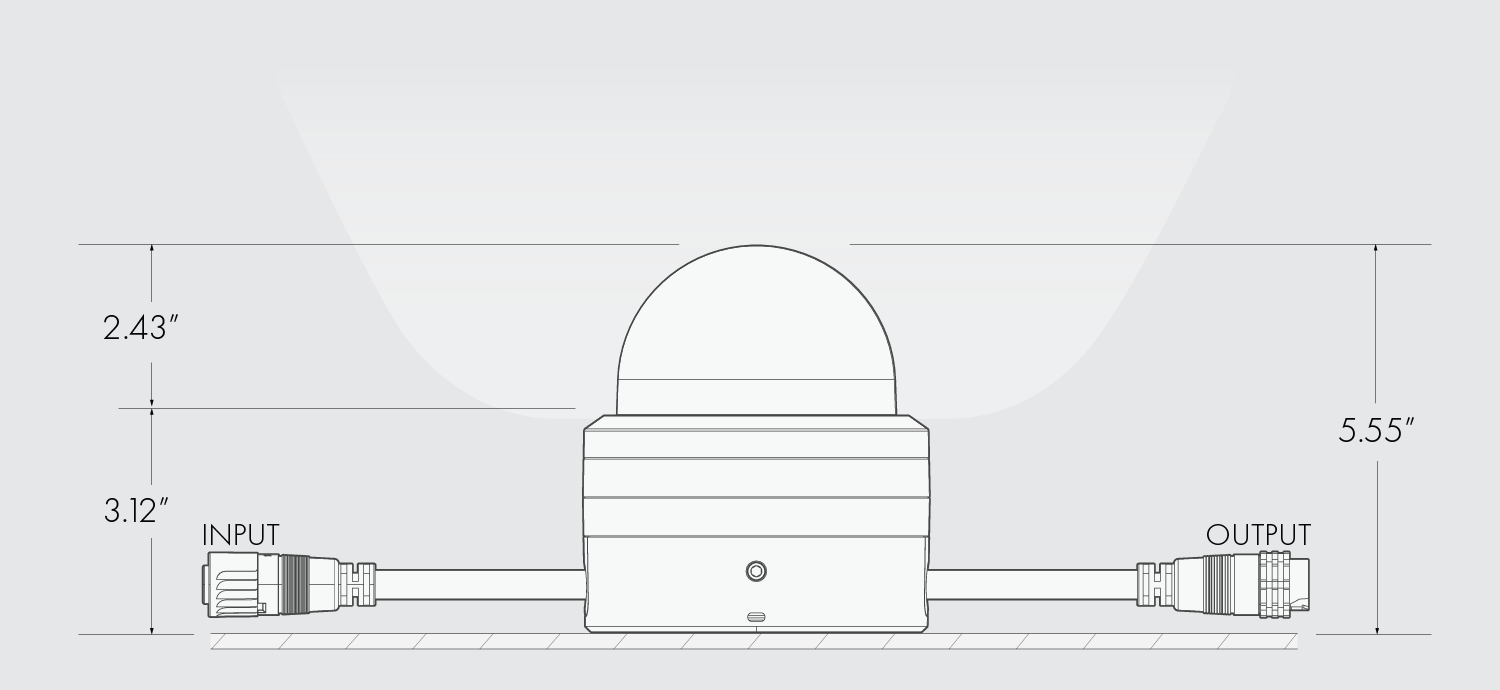

Surface mount dome lens

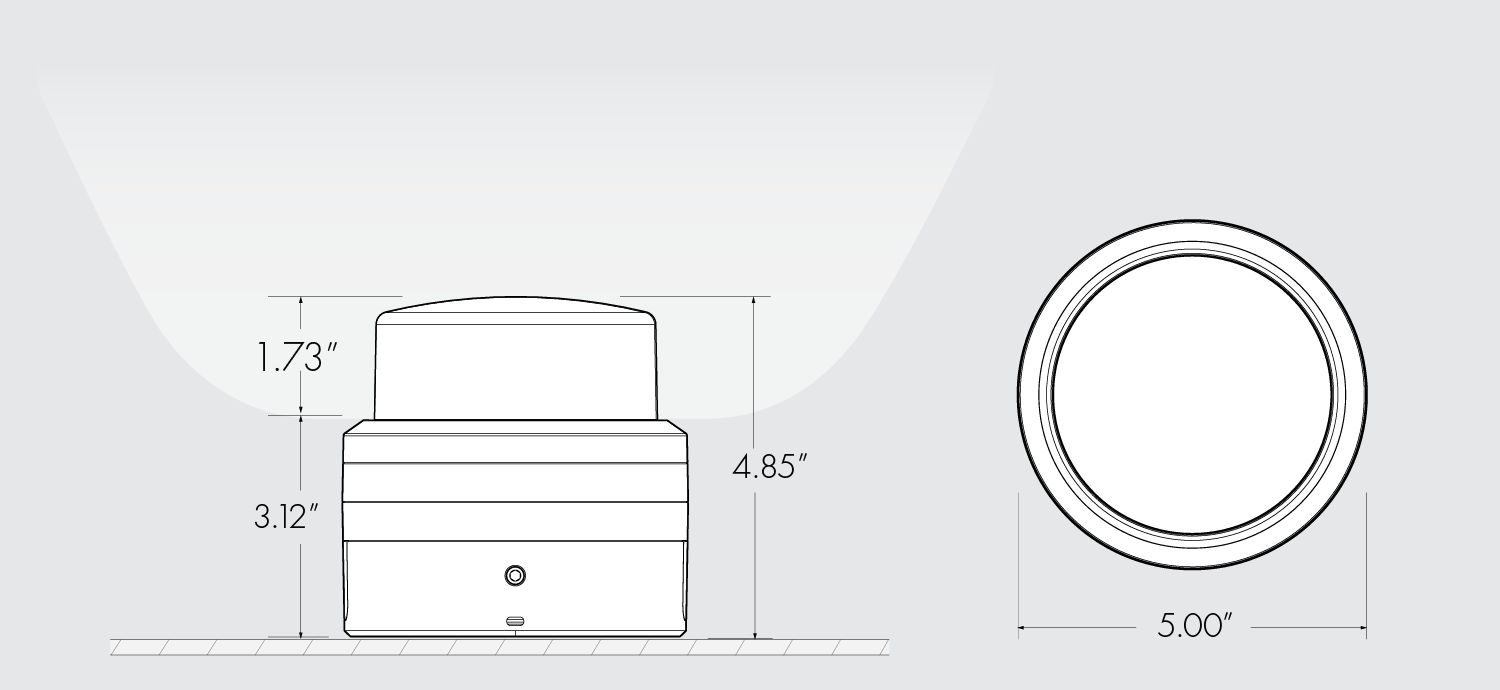

J-box mount flat lens

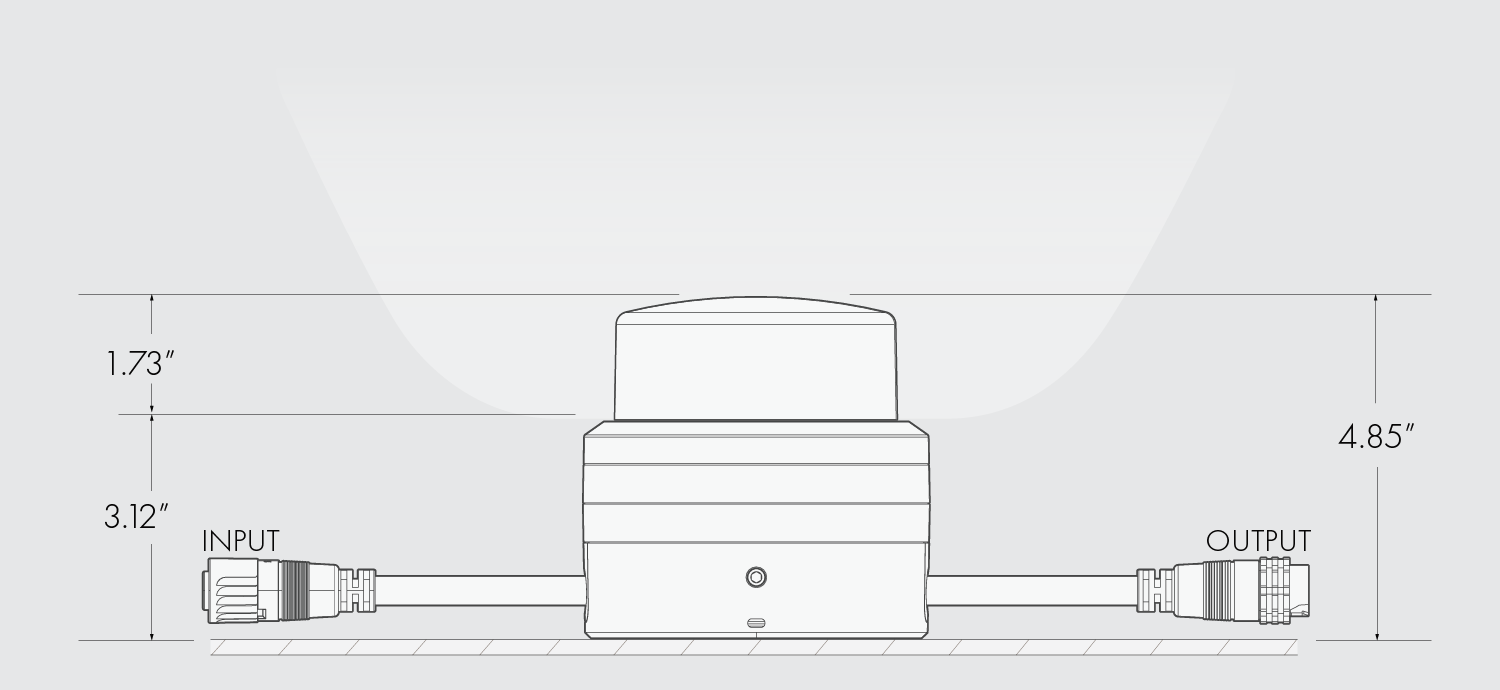

Surface mount flat lens

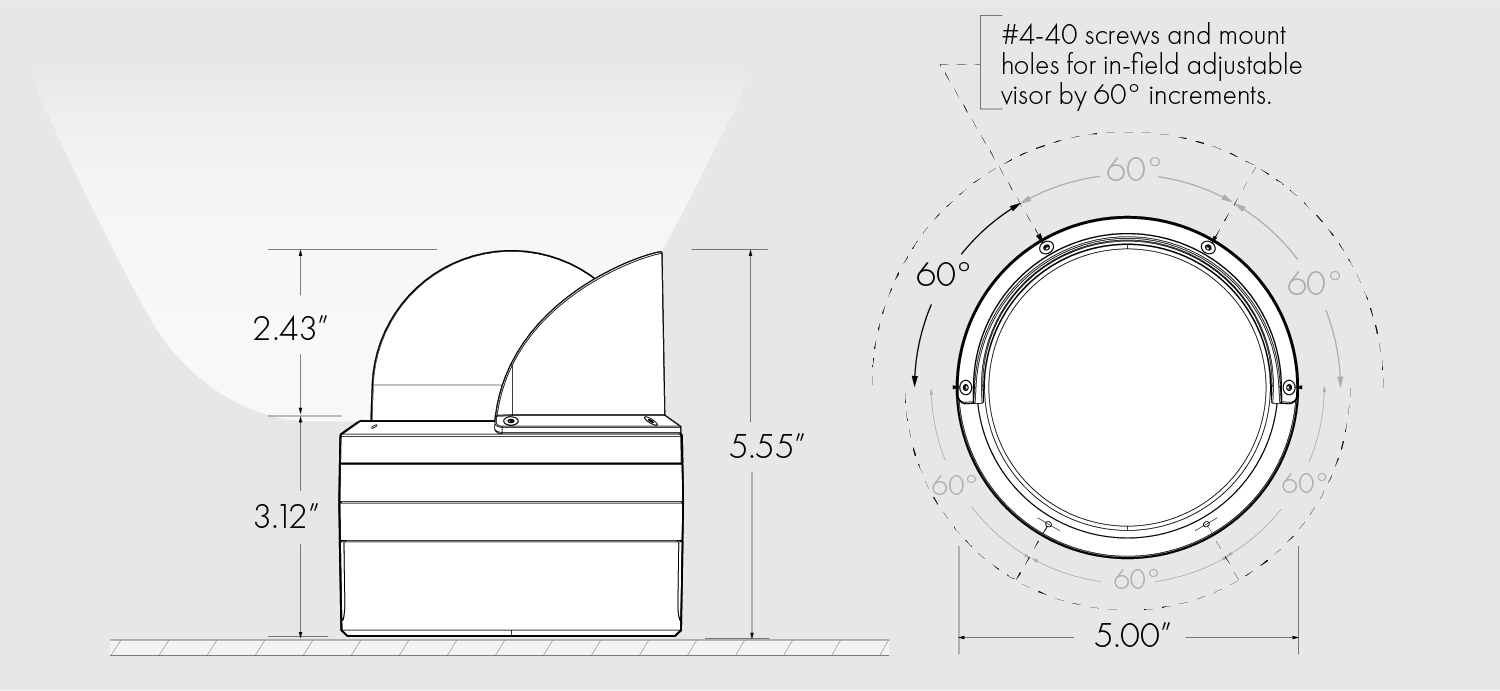

J-box mount dome lens with visor

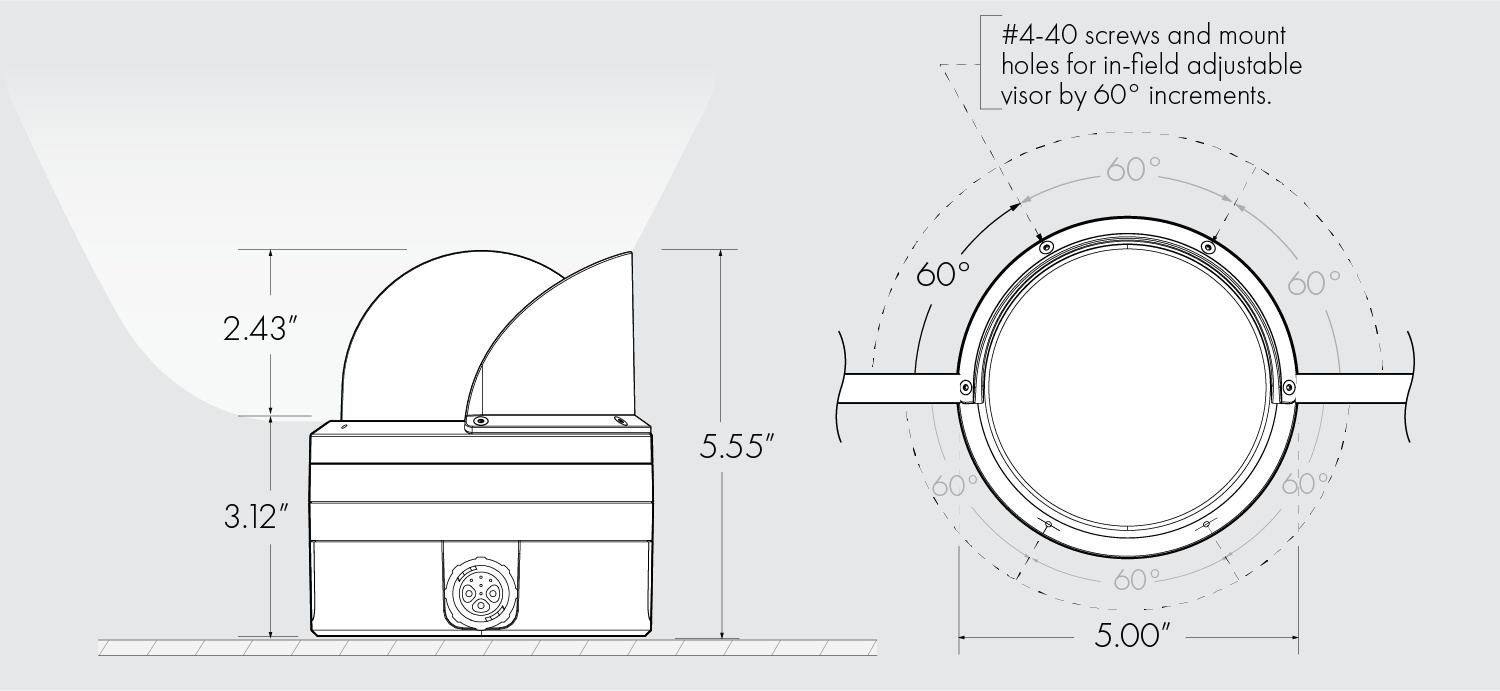

Surface mount dome lens with visor

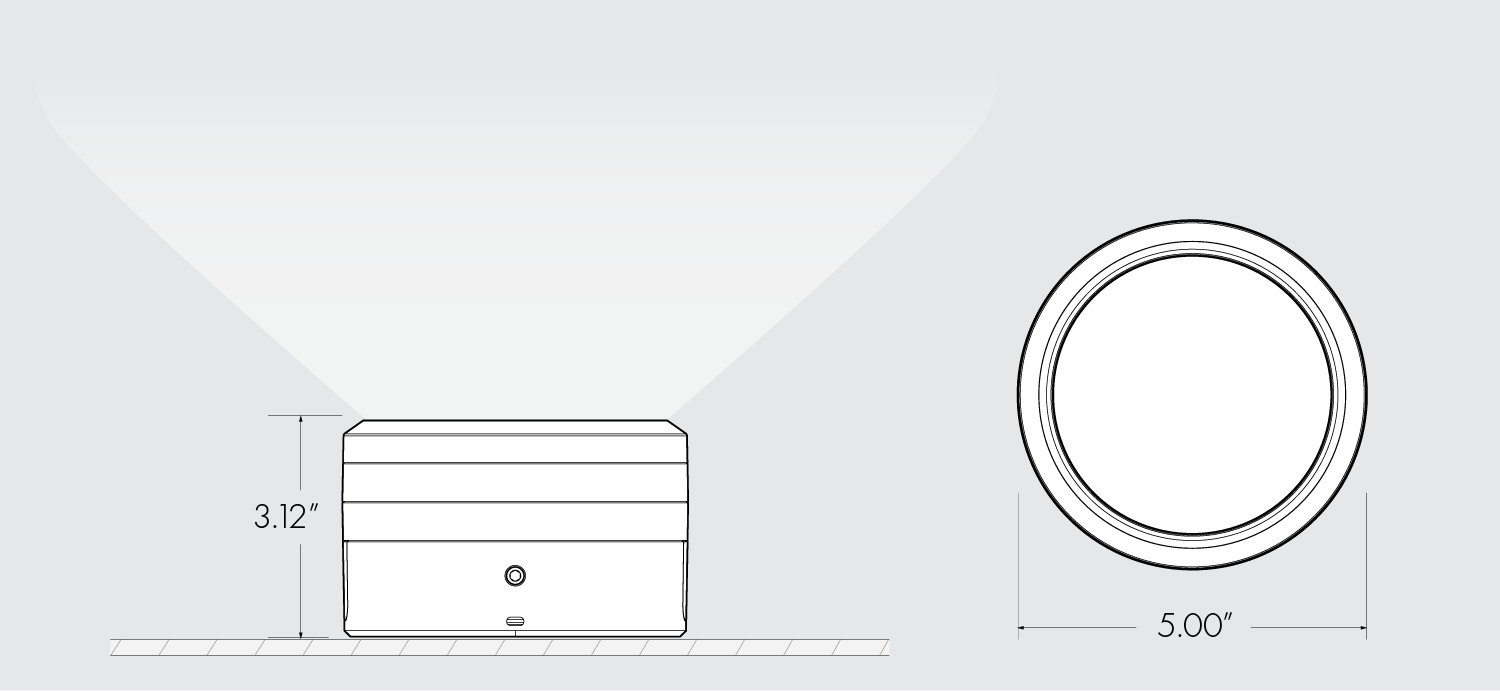

J-box mount flush lens
Surface mount flush lens

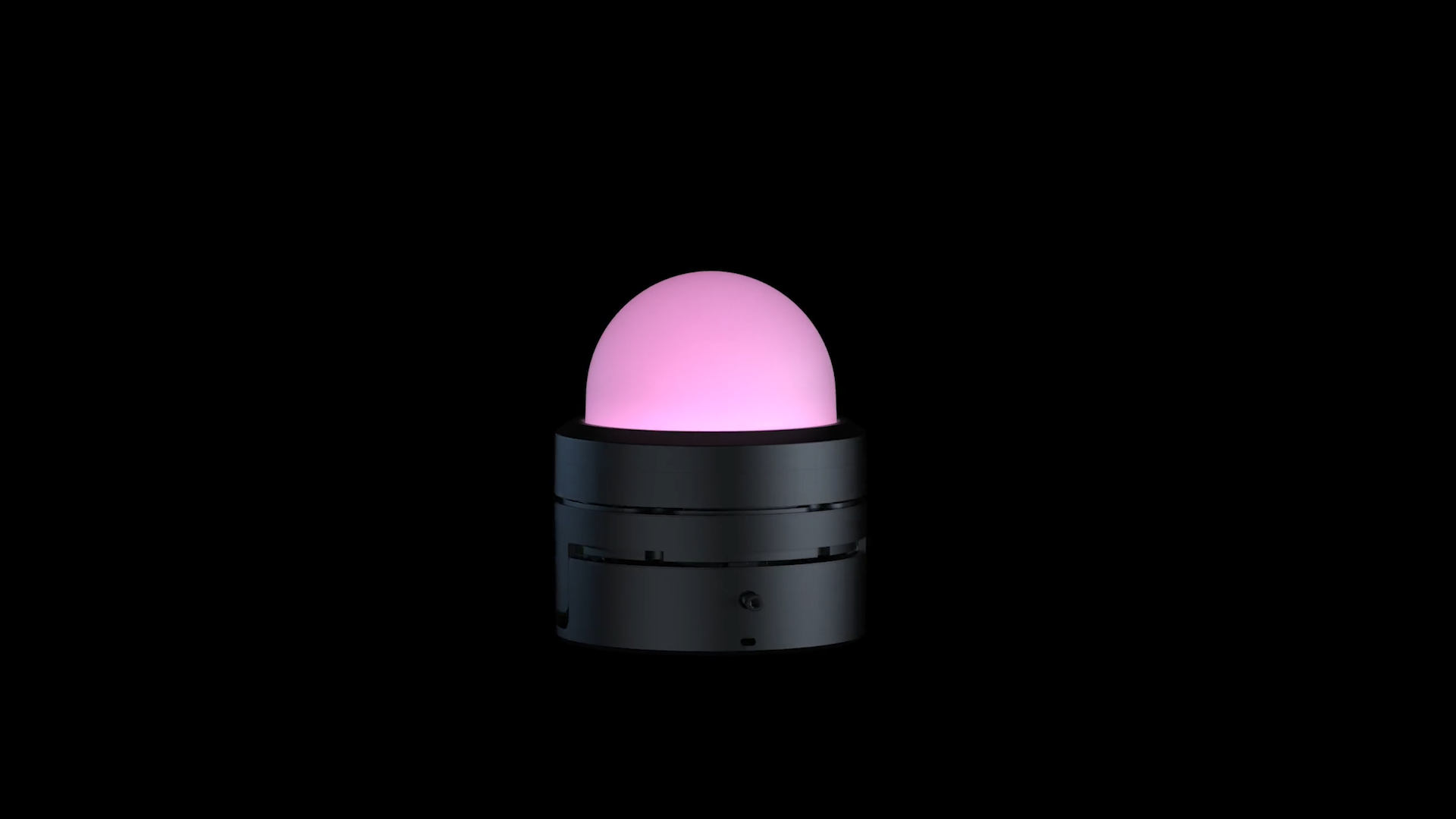

Argo Media Dot (DOT) Video
Argo Media Dot (DOT) Downloads
Specification Sheets
Argo Media Dot White Light Specification Sheet
|
Preview Specification Sheet
Download Specification Sheet
Argo Media Dot Tunable White Light Specification Sheet
|
Installation Instructions
Argo Media Dot Installation Instructions
|
Argo Media Dot Visor Installation Instructions
|
Argo Media Dot Visor with Set Screws Installation Instructions
|
Wiring Instructions
Argo Media Dot White Light Wiring Instructions
|
Virtual Brochures
Argo Media Dot Virtual Brochure
|
Preview Virtual Brochure Digital Brochures (PDF)
Argo Media Dot Digital Brochure
|
Warranty
Standard Warranty
|
