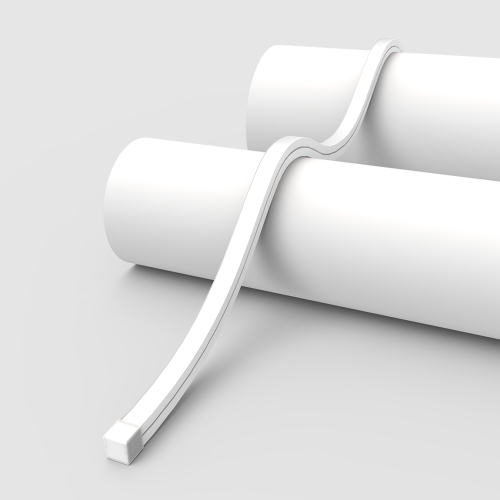

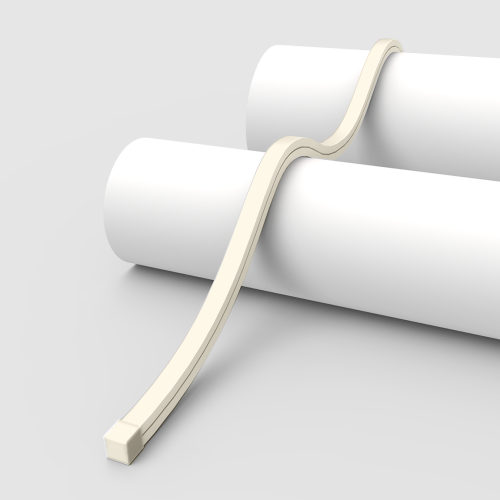

Co-Pilot Flat Vertical (CPF)

A flexible linear direct view for interior and exterior applications.

Output:

5.3W/FT
Performance:

UP TO 67.8 LM/W
Distribution:

115°
CCT:

2200K, 2700K, 3000K, 3500K, 4000K
Static Colors:

Red, Green, Blue, Amber
CRI:

+80
Voltage:

24V DC
Power:

Remote Power Supply (120V or 277V)
Control:

0-10V, DMX Dimming
Bend Direction:

Vertical, 4.73" Dia. Top and Bottom
Minimum Cutting Length:

2.46 IN Increments

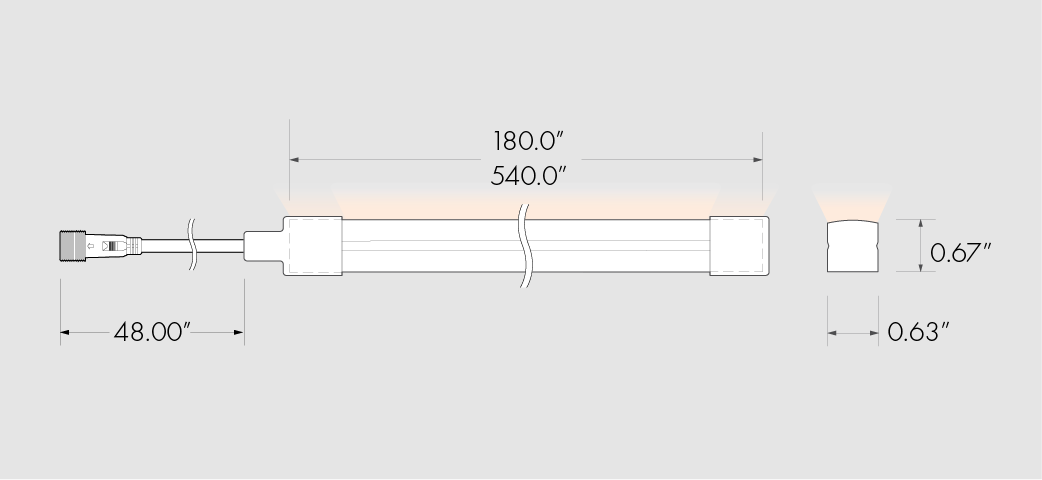

Dimensions:

0.63 W x 0.67 H
Length:

15.0 FT (4.5 M)
Housing:

White Silicone Extrusion
Mounting:

Surface Mount
Operating Temperature:

-25°C - 60°C
Warranty:

3-Year Limited
Certifications:

UL, ROHS, IP67
