Co-Pilot Wash (CPW)

  • white light
  • flexible linear
  • performance accent
  • horizontal and vertical bend
Flexible Linear for Interior and Exterior Rated IP66 for exterior use
Slide 7

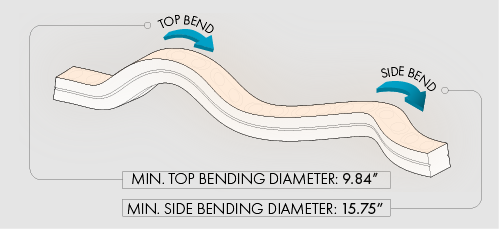

Flexible Multi-Directional Bends

Slide 7
Slide 7
Slide 7
Slide 7
previous arrow
next arrow

Downloads

  • Co-Pilot Wash (CPW) Specification Sheet Co-Pilot Wash (CPW) Specification Sheet Specification Sheet
  • Co-Pilot Wash (CPW) Interior Product Comparison Co-Pilot Wash (CPW) Interior Product Comparison Interior Product Comparison
  • Co-Pilot Wash (CPW) Exterior Product Comparison Co-Pilot Wash (CPW) Exterior Product Comparison Exterior Product Comparison
  • IES Files IES Files
  • Co-Pilot Wash (CPW) Installation Sheet Co-Pilot Wash (CPW) Installation Sheet Installation Sheet
  • Co-Pilot Wash (CPW) Wiring Instructions Co-Pilot Wash (CPW) Wiring Instructions Wiring Instructions
Share this product page
Facebook Twitter LinkedIn Email Pinterest

White Light & Static Colors

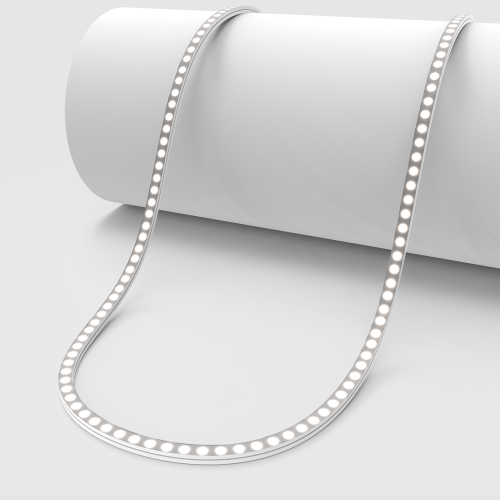

Co-Pilot Wash (CPW)

A flexible linear direct view for interior and exterior applications.

Product Family: Flexible Linear (Co-pilot)

  • Output:

    4.4 W/Ft

  • Performance:

    Up To 72.7 LM/W

  • Distribution:

    30°, Asymmetric

  • CCT:

    2200K, 2700K, 3000K, 3500K, 4000K,

  • Static Colors:

    Red, Green, Blue, Amber

  • CRI:

    +80

  • Voltage:

    24V DC

  • Power:

    Remote Power Supply (120V or 277V)

  • Control:

    0-10V Dimming, DMX Dimming

  • Bend Direction:

    Horizontal and Vertical

  • Length:

    15.0 Ft

  • Housing:

    White Silicone Extrusion

  • Mounting:

    Surface Mount

  • Operating Temperature:

    -25°C - 60°C

  • Warranty:

    3 YEAR LIMITED

  • Certifications:

    UL, ROHS, IP67
