D2/D3

  • white light
  • asymmetric indirect
  • new 500W
Asymmetric Indirect for Interior and Exterior Rated IP66 for exterior use

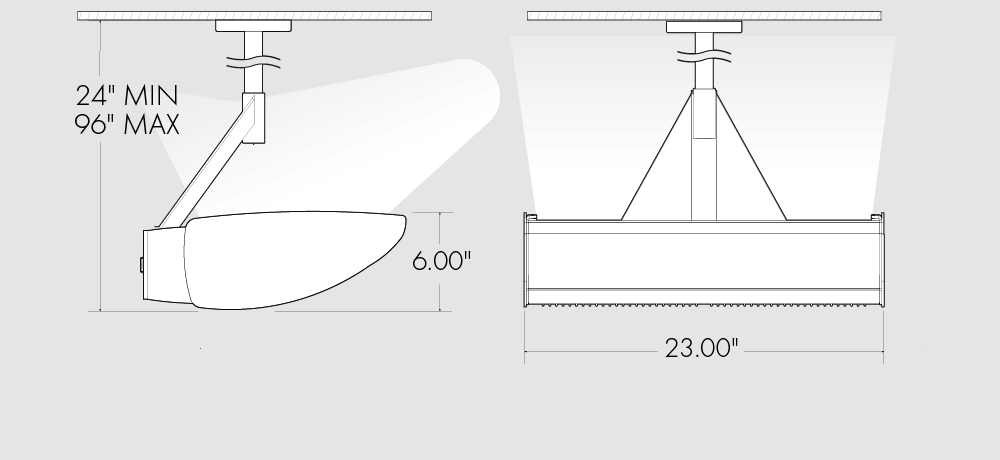

D2/D3 Asymmetric Indirect
D2/D3

A high-performance ceiling washing fixture for interior and exterior applications.

Product Family: Asymmetric Indirect (D)

Share this product page
Facebook Twitter LinkedIn Email Pinterest
  • Light Source:

    200W, 300W, 380W, 500W

  • Distribution:

    Asymmetric Indirect

  • CCT:

    2700K, 3000K, 3500K, 4000K

  • CRI:

    80 CRI

  • Performance:

    Up to 49,618 Lumens

  • Voltage:

    120V or 277V

  • Power:

    Integrated Power Supply

  • Control:

    0-10V (Dims Down to 10%)

  • Weight:

    40 lbs (18.1 kg)

  • Housing:

    Extruded Aluminum

  • Lens:

    Tempered Glass

  • Finish:

    High Durability Powder Coat

  • Warranty:

    5-Year Limited

  • Operating Temp:

    200W - 300W: -40° C To 50° C

  • Operating Temp:

    380W: -40° To 40° C

  • 575W: -40° To 40° C

  • Lumen Maintenance:

    84,000 Hours

  • Certification:

    ETL and cETL Dry Location, IP66 Option


    D2/D3 Downloads

    Specification Sheets

    Installation Instructions

    Wiring Instructions

    IES Files

    D2 IES Files |

    Revit Files

    D2 Revit Files |

    Warranty
