E5X (E5X)

  • exterior
  • asymmetric wallwash
  • new
Asymmetric Wall Wash Exterior Rated IP67 for exterior use
Slide 7

Minimal Profile

Slide 7

IP67 Rated

Slide 7

Rotate | Aim | Lock

Slide White

Asymmetric Wall Wash

Slide White

Exterior LED Wall Wash

Slide 7

Asymmetric Light Distribution

Slide White

Great Performance

Slide White

Standard Internal Louvers

Slide 7

Direct or Indirect Orientation

previous arrow
next arrow


  • E5X (E5X) Specification Sheet E5X (E5X) Specification Sheet Specification Sheet
  • IES Files IES Files
  • Revit Files Revit Files
  • E5X (E5X) Installation Instructions E5X (E5X) Installation Instructions Installation Instructions
  • E5X (E5X) Wiring Instructions E5X (E5X) Wiring Instructions Wiring Instructions
  • E5X (E5X) Warranty E5X (E5X) Warranty Warranty
Share this product page
Facebook Twitter LinkedIn Email Pinterest

White Light

E5X (E5X)

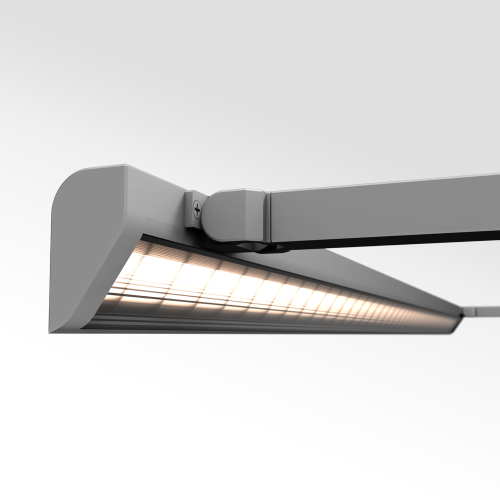

The E5X is a high-performance, exterior LED wall wash that provides stunning asymmetric light distribution.

Product Family: Linear (Structure)

  • Light Source:

    High Performance LEDs

  • Output:

    4.0 W/FT, 8.0 W/FT, 12.0 W/FT

  • Distribution:

    Asymmetric Wall Wash

  • CCT:

    2700K, 3000K, 3500K, 4000K

  • CRI:

    82 CRI (Optional 90 CRI)

  • Performance:

    Up to 97 LM/W

  • Voltage:

    120V or 277V

  • Power:


  • Dimming:

    0-10V, Lutron Hi-Lume, DMX

  • Lengths:

    12", 24", 36", 48"

  • Weight:

    0.75 LBS/FT

  • Housing:

    Precision Extruded Aluminum

  • Lens:

    High Density Tempered Glass

  • Internal Louver:

    Injection Molded

  • Finish:

    High Durability Powder Coating

  • Lumen Maintenance:

    60,000 HRS L70

  • Operating Temperature:

    -20° C to 50° C

  • Certification:

    ETL and cETL for IP67
