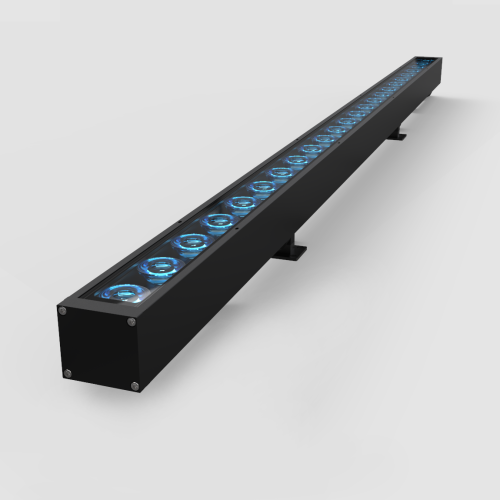

Medley Exterior Remote (MER)
The Medley Exterior Remote is a high-performance LED linear luminaire that provides direct and indirect, color-changing light.
Powered by Nitro Color.
-
Output:
3.5 W/Ft, 9.0 W/Ft, 15.0 W/Ft
-
Optics:
10°X10°, 10°X60°, 10°X90°,20°X20°, 20°X60°, 20°X90, 40°X40°, 40°X60°, 40°X90°,60°X60°, 60°X90°, 80°X80°, Asymmetric
-
CCT's:
RGB30K, RGB40K, RGBA, AWH (27K-65K)
-
Performance:
Up to 3,026 Lumens and 28,771 Peak Candela
-
Voltage:
120V or 277V
-
Power:
Remote Power Supply
-
Control:
DMX/RDM
-
Dimensions:
1.85" X 2.00"
-
Weight:
1.8 Lbs Per Foot (Surface Mount)
-
Housing:
Precision Extruded Aluminum
-
Lens:
High Density Tempered Glass
-
Finish:
High Durability Powder Coating
-
Operating Temp:
-20° C To 50° C
-
Warranty:
5-Year Limited
-
Lumen Maintenance:
75,000 Hours
-
Certification:
ETL and cETL IP67, IK07, 5G and 3G Options
