White Light & Static Colors

Medley Exterior Remote (MER)

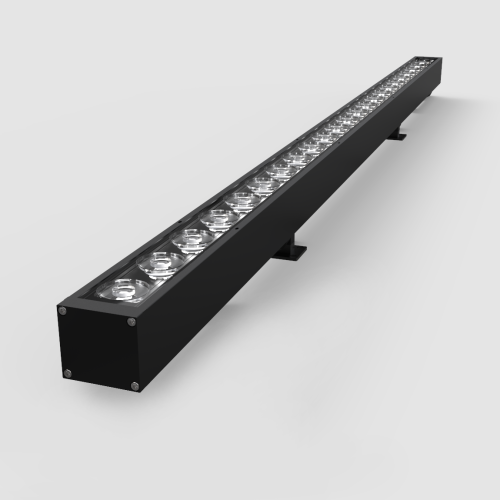

The Medley Exterior Remote is a high-performance LED linear luminaire that provides direct and indirect white light.

  • Light Source:

    3.5 W/Ft, 9.0 W/Ft, 15.0 W/Ft

  • Optics:

    10°X10°, 10°X60°, 10°X90°

  • 20°X20°, 20°X60°, 20°X90°

  • 40°X40°, 40°X60°, 40°X90°

  • 7°X60°, 60°X60°, 60°X90°

  • 80°X80°, ASYMMETRIC

  • CCT's:

    27K, 30K, 35K, 40K

  • Static Colors:

    Red, Green, Blue, Amber

  • CRI:

    82 (Optional 90+)

  • Performance:

    Up To 117530 Peak Candela

  • Voltage:

    120V or 277V

  • Power:

    Remote Power Supply

  • Control:

    0-10V, DMX Dimming, Lutron Hi-Lume

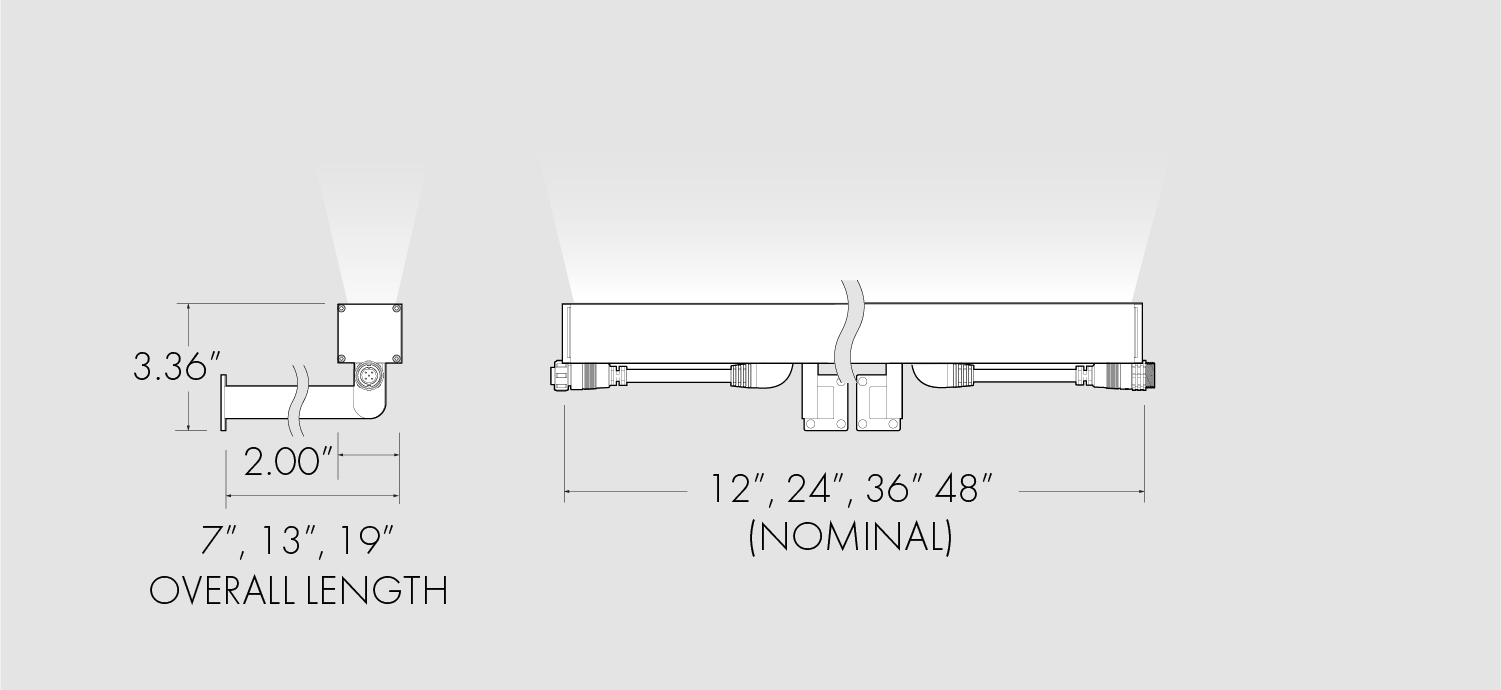

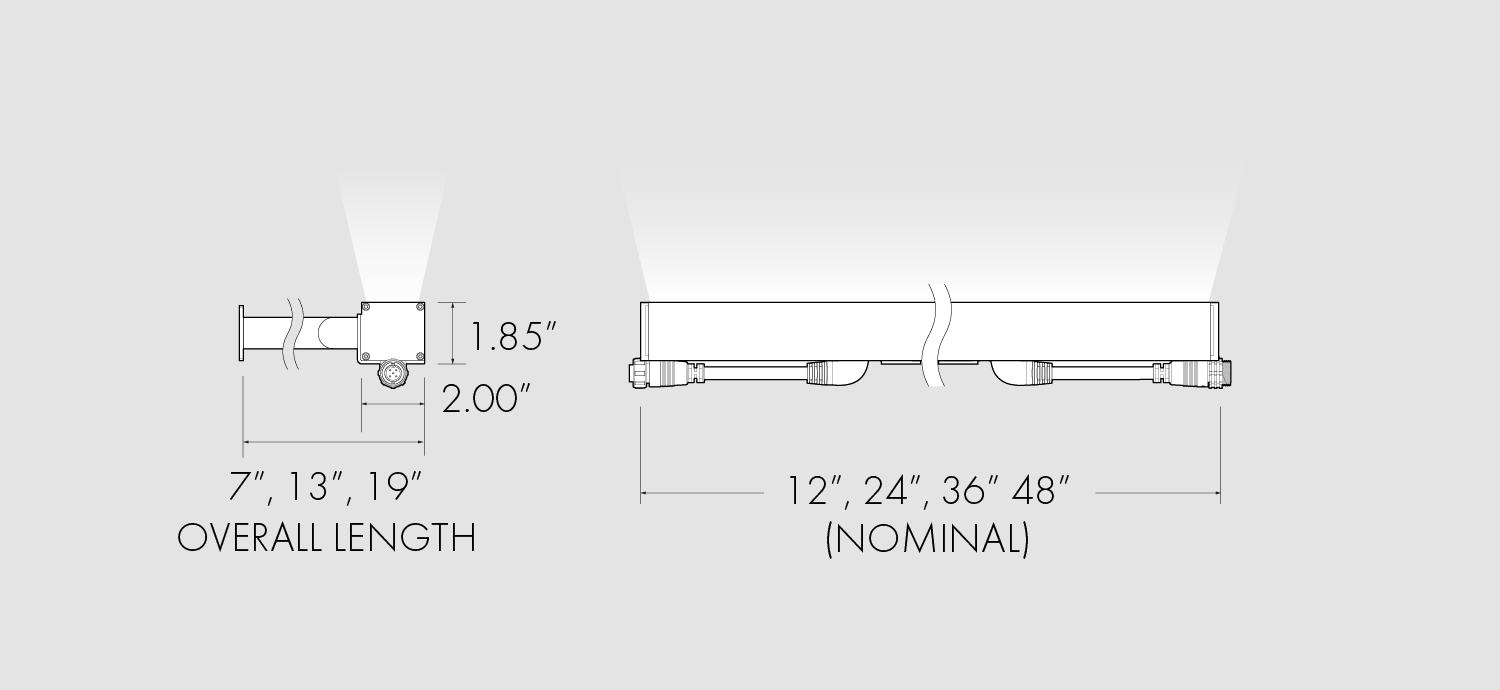

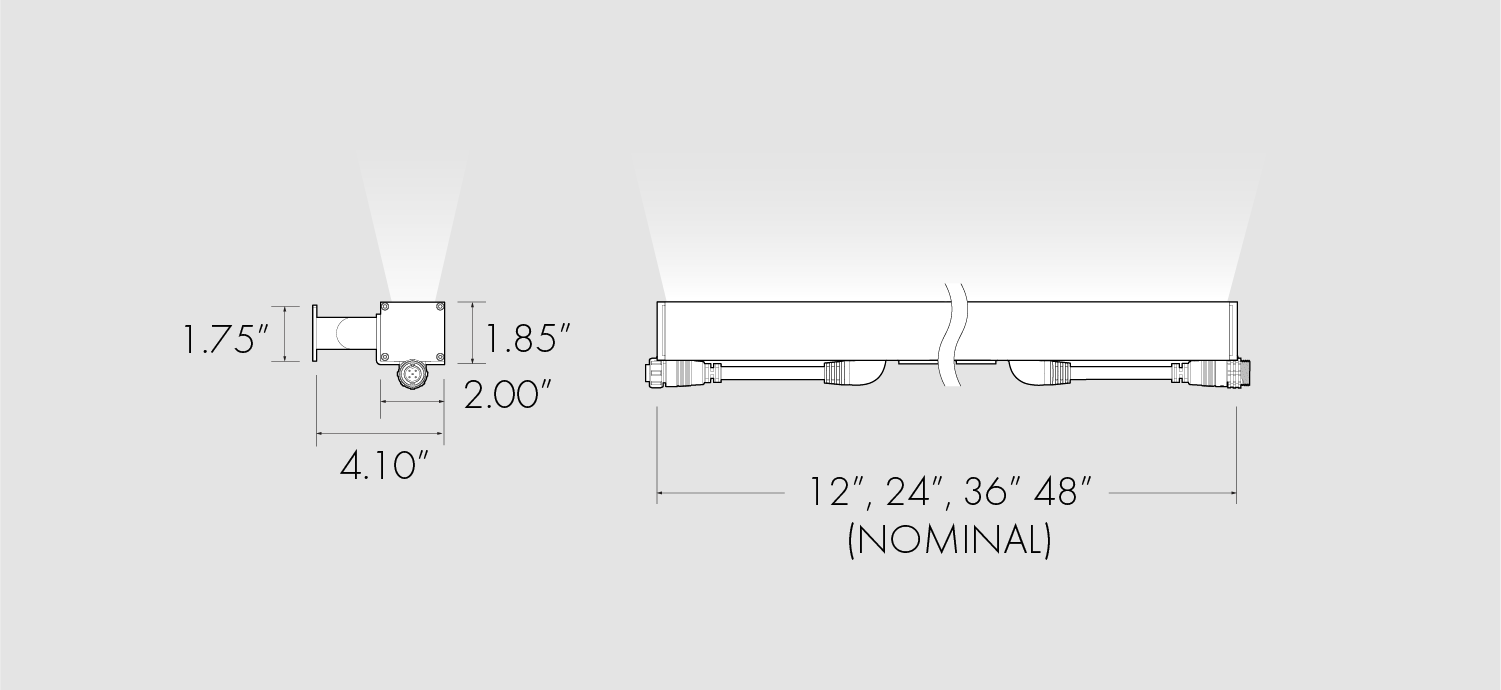

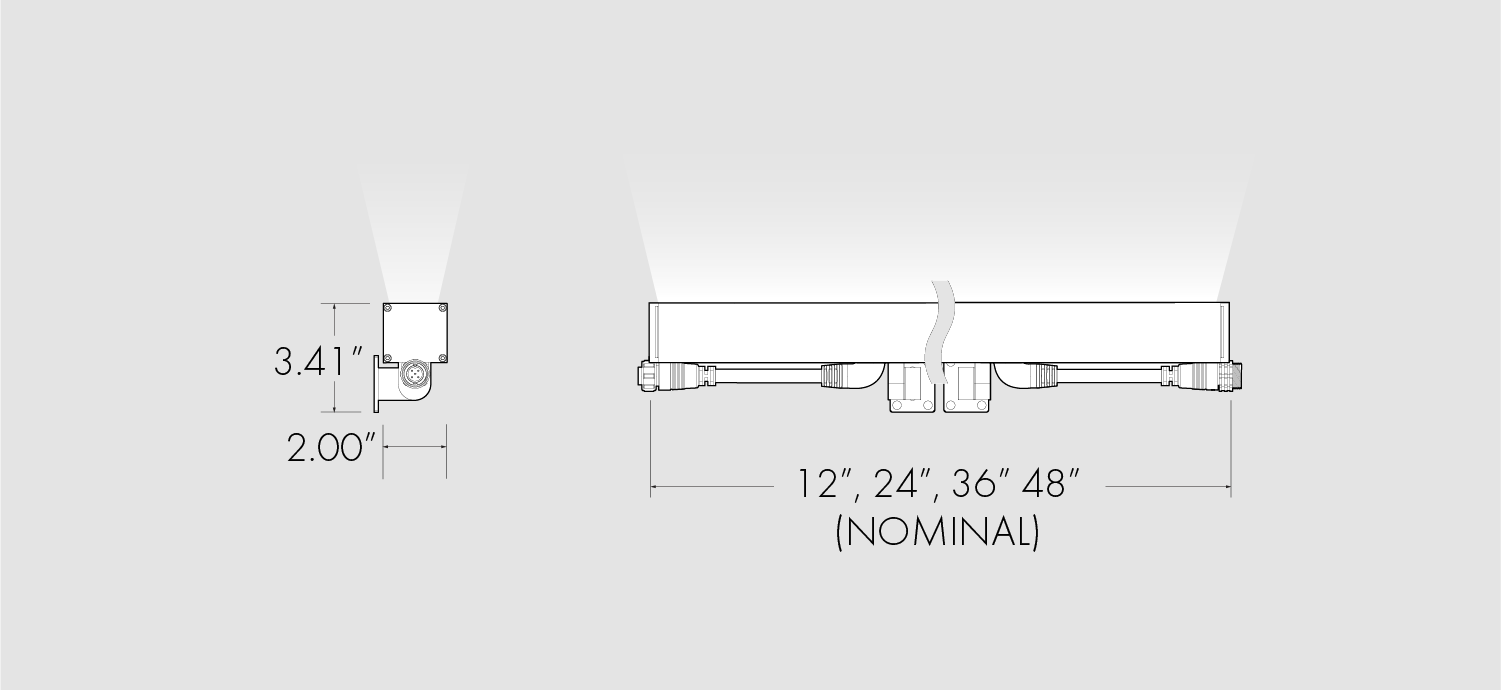

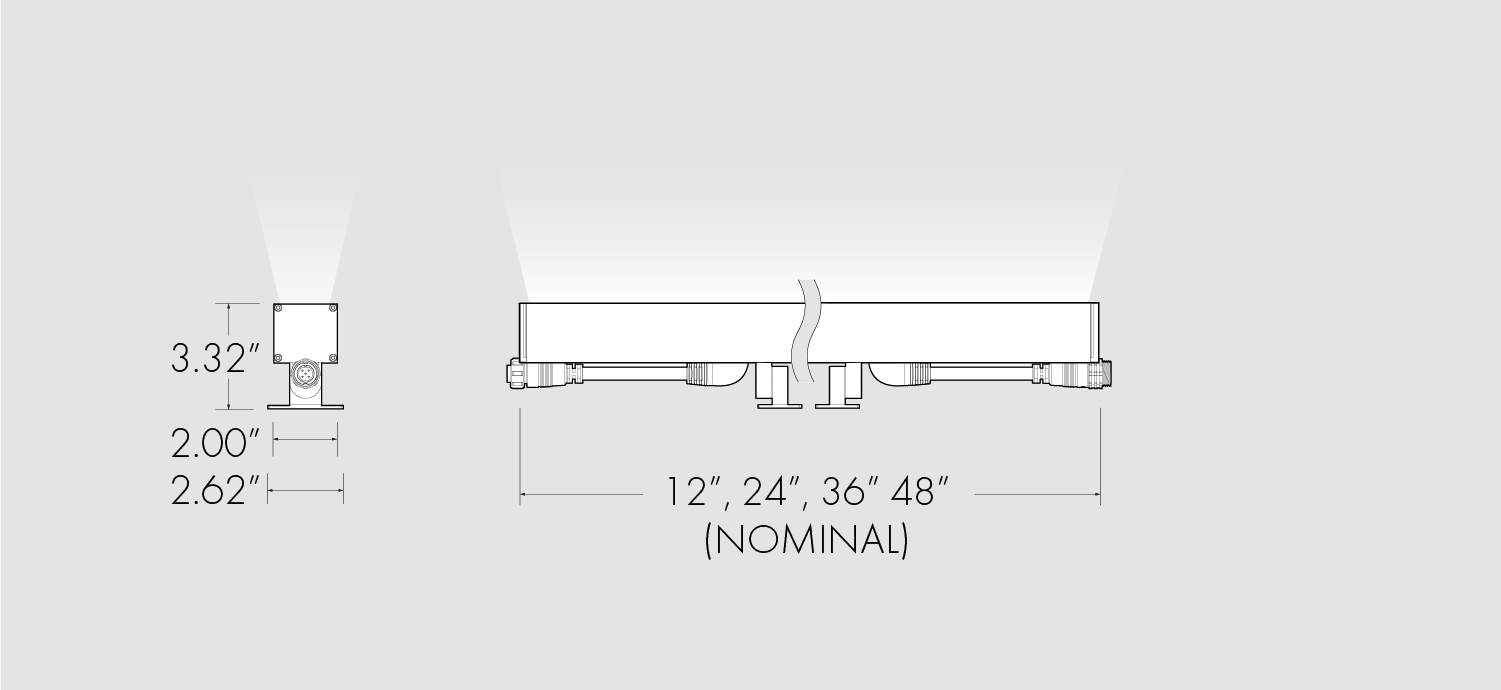

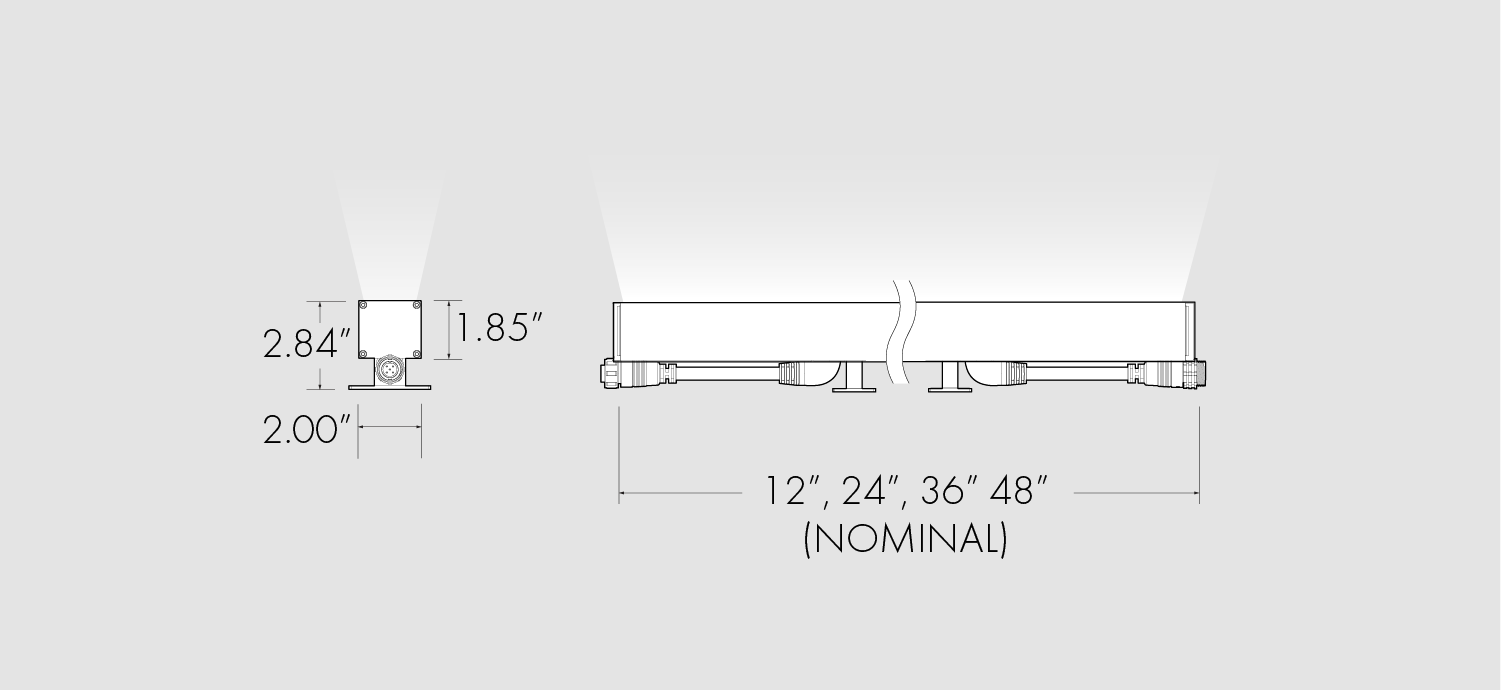

  • Dimensions:

    1.85" X 2.00"

  • Weight:

    1.8 Lbs Per Foot (Surface Mount)

  • Housing:

    Precision Extruded Aluminum

  • Lens:

    High Density Tempered Glass

  • Finish:

    High Durability Powder Coating

  • Operating Temp:

    -20° C To 50° C

  • Warranty:

    5-Year Limited

  • Lumen Maintenance:

    75,000 Hours

  • Certification:

    ETL/cETL IP67, IK07, 5G/3G Options
