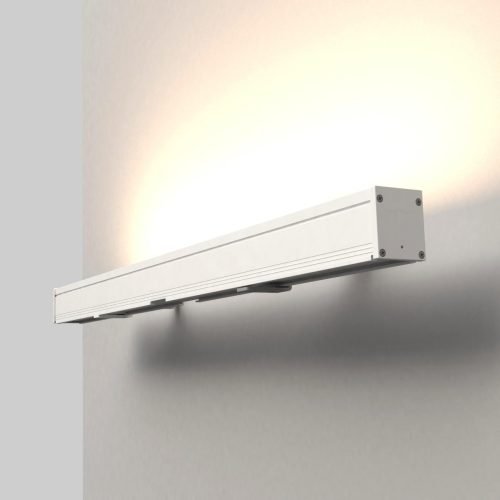

Medley View II

  • white light
  • direct/indirect linear
  • discontinued
  • Light Source:

    3.5 W/Ft, 9.0 W/Ft, 17.0 W/Ft

  • Optics:

    10°X10°, 7°X60°, 15°X60°, 30°X60°, 45°X60°, 100°X100°, Asymmetric

  • CCT's:

    27K, 30K, 35K, 40K

  • Static Colors

    Red, Green, Blue, Amber

  • Performance:

    Up To 54636 Peak Candela

  • Voltage:

    Universal 120-277V

  • Power:

    Integrated Power Supply

  • Control:

    0-10V, DMX Dimming

  • Dimensions:

    2.63" X 3.00"

  • Lengths:

    12" up to 96" (In 12" increments)

  • Weight:

    4' Fixture With SMS Mounting: 14.6 LBS (6.6KG)

  • Housing:

    Precision Extruded Aluminum

  • Lens:

    High Performance Acrylic

  • Finish:

    High Durability Powder Coating

  • Operating Temp:

    -20° C To 40° C

  • Warranty:

    5-Year Limited

  • Lumen Maintenance:

    75,000 Hours

  • Certification:

    ETL/cETL Wet Location, IP67, 3G, IK07
