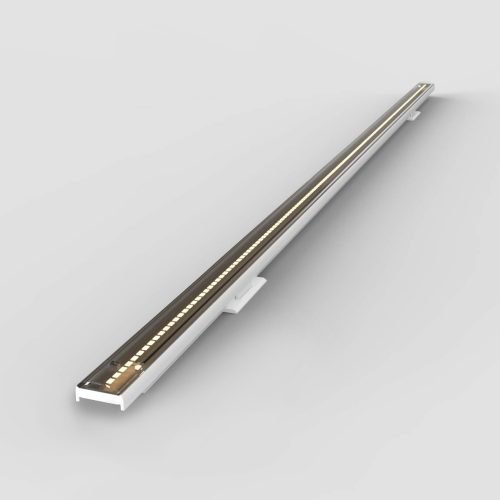

Pilot AC Cove (PAC)

A low-profile cove and wall grazer for interior applications.

Product Family: Cove (Pilot)

  • Light Source:

    4W/FT

  • Optics:

    120°X120°

  • CCT:

    2700K, 3000K, 3500K, 4000K

  • CRI:

    90+

  • Performance:

    Up to 561 Peak Candela

  • Voltage:

    120 Line Voltage

  • Power:

    Integrated Power Supply

  • Control:

    Flicker Free Triac Dim To 10% ELV Reverse Phase, Trailing Edge

  • Weight:

    0.35 LBS (0.15 KG) - 1.4 LBS (0.64 KG)

  • EPA:

    0.483 FT2

  • Housing:

    ABS Extruded Housing and Molded End Caps

  • Lens:

    Polycarbonate Lens

  • Finish:

    White

  • Warranty:

    5-Year Limited

  • Operating Temp:

    -25° C TO 40° C

  • Lumen Maintenance:

    75,000 Hours L70

  • Certification:

    ETL Listed For Damp/Dry Location
