Pilot Cove (PCM)

cove lighting
color changing
low profile
in production

Cove Lighting for Interior

Product_Image_PCM_CC_01

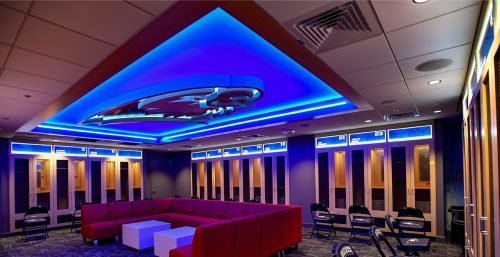

Product_Image_PCM_CC_Screaming_Eagle_Arena

Product_Image_PCM_CC_Screaming_Eagle_Arena_2

Product_Image_PCM_CC_RBC

Downloads

Specification Sheet
Revit
IES Files
Installation Instructions
Wiring Instructions
Product Comparison Guide
Warranty

Share this product page

Color-changing

Pilot Cove (PCM)

A low-profile cove and wall grazer for interior applications.

Light Source:

5W/FT, 7W/FT, 10 W/FT
Optics:

120°X120°
CCT:

RGBWq
Performance:

45 LM/W
Voltage:

Universal 120-277 V
Power:

Integrated Power Supply
Control:

DMX Fixture, System Or FT By FT Resolution
Dimensions:

1.87" x 1.93" x 12" - 1.87" x 1.93" x 48"
Weight:

1.6 LBS (0.72 KG) - 6.0 LBS (2.72 KG)
Housing:

Extruded Aluminum Housing, Molded End Caps
EPA:

0.483 FT²
Lens:

Polycarbonate Lens
Finish:

Anodized Metallic Gray
Warranty:

5-Year Limited
Operating Temp:

-25° C To 40° C
Lumen Maintenance:

75,000 Hours
Certification:

ETL, cETL For Damp/Dry Location
