Pilot PCM

cove lighting
white light
low profile
in production

Product_Image_PCM_WL_01

Product_Image_PCM_WL_Strada

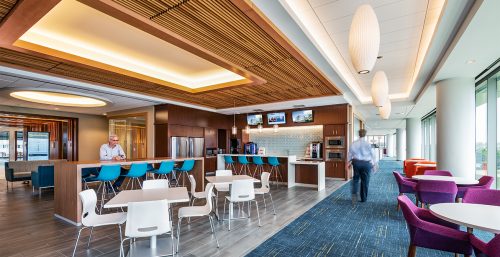

Product_Image1_PCM_WL_Granite_Park

Product_Image_PCM_WL_HGBCC

Product_Image_PCM_WL_LCC

White Light

Quickship Configurations

Available Configurations

IQ/PCM/7W/35K/120°/SM/12/UNV/MG/FL

IQ/PCM/7W/35K/120°/SM/48/UNV/MG/FL

IQ/PCM/7W/50K/120°/SM/48/UNV/MG

Light Source:

3.5 W/FT Up To 13 W/FT
Optics:

120°X120°, Asymmetric
CCT:

27K, 30K, 35K, 40K, Dim to Warm
Static Colors:

Red, Blue, Green, Amber
CRI:

90+ CRI
Performance:

Up To 113 LM/W
Voltage:

Universal 120-277 V
Power:

Integrated Power Supply
Control:

0-10V Dimming, DMX Dimming
Dimensions:

1.87" x 1.93" x 12" - 1.87" x 1.93" x 48"
Weight:

1.6 LBS (0.72 KG) - 6.0 LBS (2.72 KG)
Housing:

Extruded Aluminum Housing, Molded End Caps
Lens:

Polycarbonate Lens
Finish:

Metallic Gray
Warranty:

5-Year Limited
Operating Temp:

-25° C To 40° C
Lumen Maintenance:

75,000 Hours
Certification:

ETL, cETL FOR DAMP/DRY LOCATION
