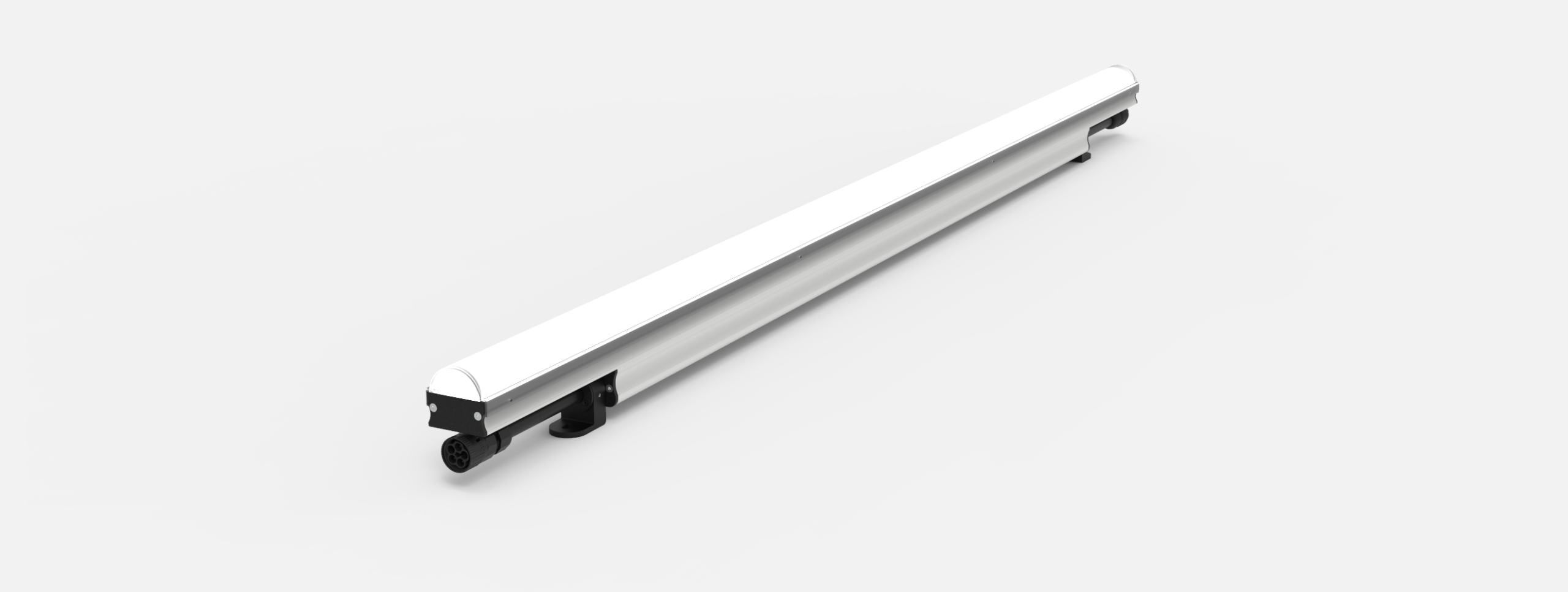

Pilot Exterior Direct View (PEX)

  • white light
  • direct view linear
  • end of life
Direct View Linear Exterior Rated IP67 for exterior use
Pilot Exterior Direct View (PEX) Direct View Linear
Pilot Exterior Direct View (PEX)

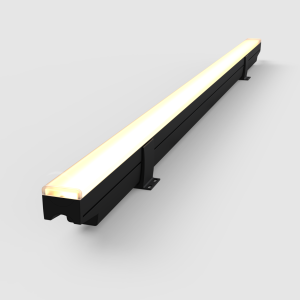

Item Discontinued. Please see Argo Media

Product Family: Discontinued

Share this product page
Facebook Twitter LinkedIn Email Pinterest

  • Light Source:

    4W/Ft, 7W/Ft, 10W/Ft

  • CCT's:

    2200K, 2700K, 3000K, 3500K, 4000K

  • Static colors:

    Red, Blue, Green, Amber

  • Optics:

    Direct View

  • Voltage:

    Universal 120-277V

  • Power:

    Integrated Power Supply

  • Dimming:

    Flicker Free Dimmable To 1%. 0-10V, (Sink), DMX Dimming

  • Lengths:

    12" And 48"

  • Weight:

    12.0": 1.65 Lbs, 48.0": 6 Lbs

  • Housing:

    Extruded Aluminum

  • Lens:

    Polycarbonate

  • Finish:

    High Durability Powder Coating

  • Operating Temp:

    -40° C To 50° C

  • Warranty:

    5-Year Limited

  • Lumen Maintenance:

    75,000 Hours

  • Certification:

    ETL and cETL for Wet Location, IP67
