Pilot Graze (PGM)

  • color changing
  • low profile grazer
  • in production
Cove/Graze Lighting for Interior


  • Pilot Graze (PGM) Specification Sheet Pilot Graze (PGM) Specification Sheet Specification Sheet
  • IES Files IES Files
  • Pilot Graze (PGM) Installation Instructions Pilot Graze (PGM) Installation Instructions Installation Instructions
  • Pilot Graze (PGM) Wiring Instructions Pilot Graze (PGM) Wiring Instructions Wiring Instructions
  • Pilot Graze (PGM) Product Comparison Guide Pilot Graze (PGM) Product Comparison Guide Product Comparison Guide
  • Pilot Graze (PGM) Warranty Pilot Graze (PGM) Warranty Warranty
Share this product page
Facebook Twitter LinkedIn Email Pinterest

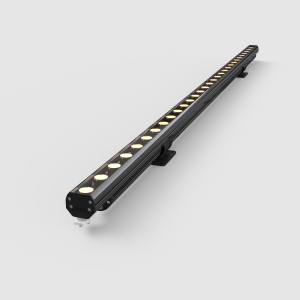

Pilot Graze (PGM)

A low-profile cove and wall grazer for interior applications.

Product Family: Cove (Pilot)

  • Light Source:

    12 W/FT

  • Optics:

    10°X10°, 10°X30°, 10°X60°, 15°X15°,15°X30°, 15°X60°, 30°X30°, 30°X60°, 60°X60°, Asymmetric

  • CCT:

    RGB30K, RGB40K, RGBA, AWH (22K - 65K)

  • Performance:

    Up To 45 LM/W

  • Voltage:

    Universal 120-277 V

  • Power:

    Integrated Power Supply

  • Control:

    DMX/ RDM

  • Dimension:

    2.10" x 1.41" x 12" - 2.10" x 1.41" x 48"

  • Weight:

    1.6 LBS (0.72 KG) - 6.0 LBS (2.72 KG)

  • Housing:

    Extruded Aluminum Housing, Molded End Caps

  • Lens:

    Polycarbonate Lens

  • Finish:

    Metallic Gray

  • Warranty:

    5-Year Limited

  • Operating Temp:

    -25° C TO 40° C

  • Lumen Maintenance:

    75,000 Hours

  • Certification:

    ETL, cETL Damp/Dry Locations
