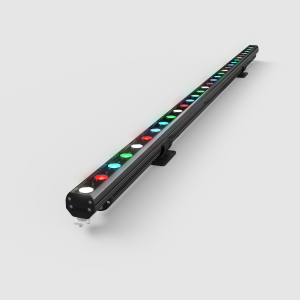

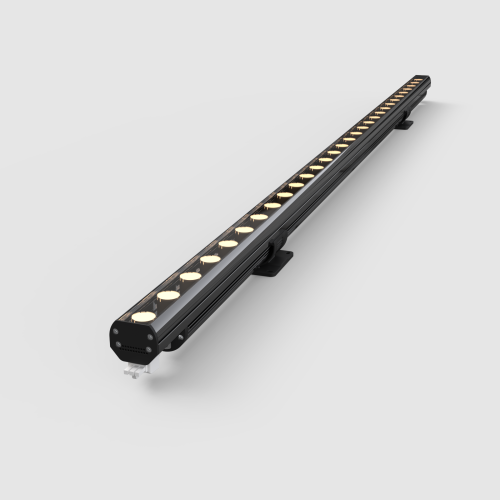

Pilot Graze (PGM)
A low-profile cove and wall grazer for interior applications.
Product Family: Cove (Pilot)
Share this product page
-
Light Source:
4 W/FT, 7 W/FT,10 W/FT
-
Optics:
10°X10°,10°X30°, 10°X60°, 15°X15°,15°X30°, 15°X60°, 30°X30°, 30°X60°, 60°X30°, 60°X60°, Asymmetric
-
CCT:
22K, 27K, 30K, 35K, 40K
Tunable White (22K-65K)
Dim to Warm -
Static Colors:
Red, Green, Blue, Amber
-
Performance:
Up To 82 LM/W
-
Voltage:
Universal 120-277 V
-
Power:
Integrated Power Supply, 2.0 mA Maximum
-
Control:
Flicker Free Dimmable To 1%, 0-10V Sink
-
Dimensions:
2.10" x 1.41" x 12" - 2.10" x 1.41" x 48"
-
Weight:
1.6 LBS (0.72 KG) - 6.0 LBS (2.72 KG)
-
Housing:
Extruded Aluminum Housing, Molded End Caps
-
Lens:
Polycarbonate Lens
-
Finish:
Metallic Gray
-
Warranty:
5-Year Limited
-
Operating Temp:
-25° C To 40°C
-
Lumen Maintenance:
75,000 Hours
-
Certification:
ETL, cETL Damp/Dry Location
Pilot Graze (PGM) Downloads
Specification Sheets
PGM White Light Specification Sheets
|
Preview Specification Sheet
Download Specification Sheet
PGM Tunable White Light Specification Sheets
|
Installation Instructions
PGM Installation Instructions
|
Wiring Instructions
PGM White Light Wiring Instructions
|
IES Files
PGM White Light IES Files
|
Revit Files
PGM White Light Revit Files
|
Guides (PDF)
Product Comparison Pilot
|
Warranty
Standard Warranty
|
Accessories
Related Products
Related Projects

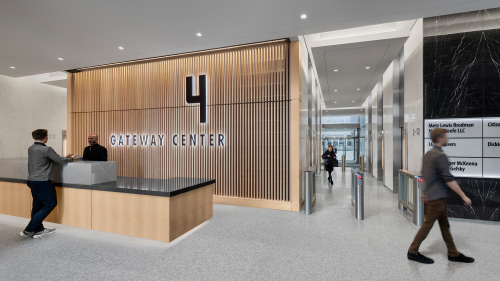

4 Gateway Center
