Pilot Micro Cove (PM) AC Cove Lighting
Pilot Micro Cove (PM)

A low-profile cove for interior applications.

Product Family: Cove (Pilot)

Share this product page
Facebook Twitter LinkedIn Email Pinterest

  • Light Source:

    4W/FT

  • Optics:

    120°X120°

  • CCT:

    2700K, 3000K, 3500K, 4000K

  • CRI:

    90+

  • Performance:

    Up to 1421 Peak Candela

  • Voltage:

    120V-277V

  • Power:

    Integrated Power Supply

  • Control:

    Flicker Free Triac Dim To 10% ELV Reverse Phase, Trailing Edge

  • Weight:

    0.35 LBS (0.15 KG) - 1.4 LBS (0.64 KG)

  • EPA:

    0.483 FT2

  • Housing:

    ABS Extruded Housing and Molded End Caps

  • Lens:

    Extruded Frosted Polycarbonate Lens

  • Finish:

    White

  • Warranty:

    5-Year Limited

  • Operating Temp:

    -25° C TO 40° C

  • Lumen Maintenance:

    75,000 Hours L70

  • Certification:

    ETL Listed For Damp/Dry Location

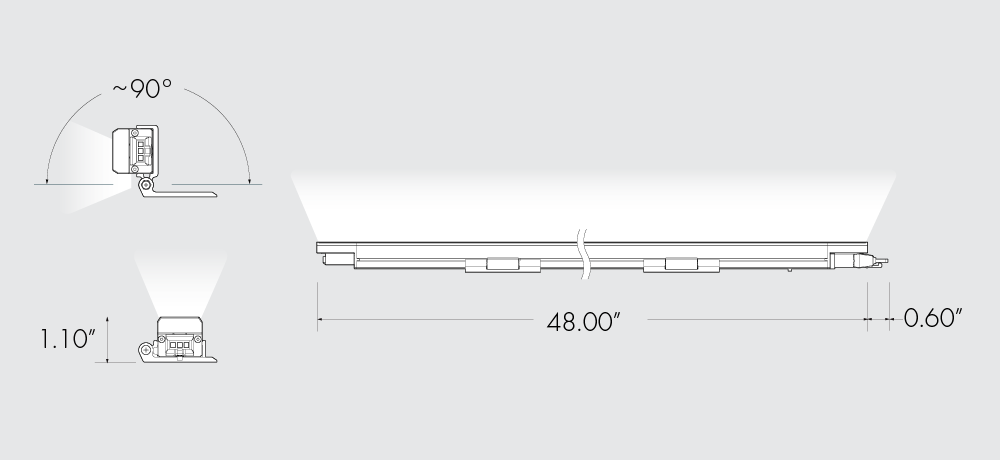

Product Image

    Pilot Micro Cove (PM) Downloads

    Specification Sheets

    Pilot Micro Cove White Light Specification Sheet |
    Preview Preview Specification Sheet | Download Download Specification Sheet

    Installation Instructions

    Pilot Micro Cove Installation Instructions |
    Preview Preview Installation Instructions | Download Download Installation Instructions

    Wiring Instructions

    Pilot Micro Cove Wiring Instructions |
    Preview Preview Wiring Instructions | Download Download Wiring Instructions

    IES Files

    Pilot Micro Cove White Light IES |
    Download Download IES Files

    Warranty

    Standard Warranty |
    Preview Preview Warranty | Download Download Warranty
