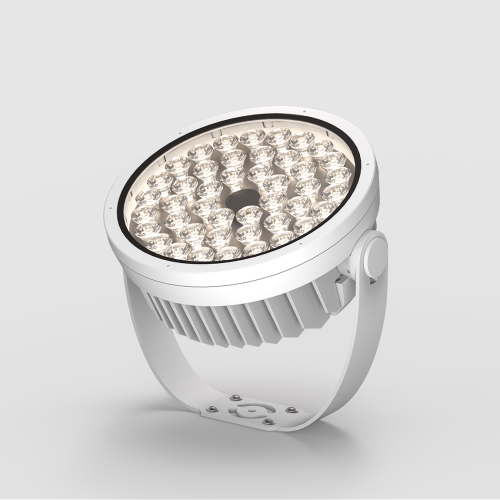

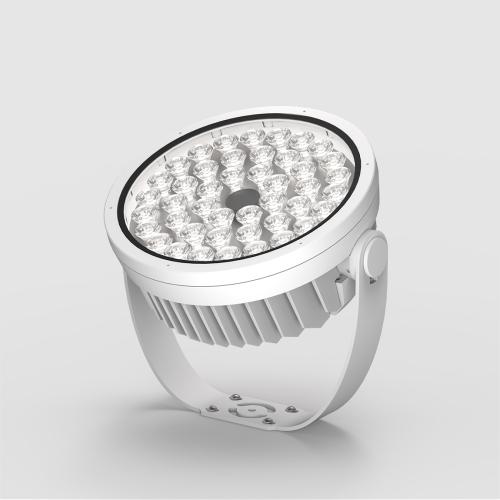

Prospot 13 (PS13)
A high-performance projector for interior or exterior applications.
Product Family: Projector (Prospot)
Certifications & Compliance: BAA, Turtle-Friendly
Share this product page
-
Output:
Standard (100 W)
-
Optics:
3°, 6°, 10°, 20°, 30°, 40°,
60°, 80°, Wall Wash, 3°X60°,
6°X60°, 10°X60°, 60°X10°, 20°X60°, 60°X20°, 40°X60°, 60°X40° -
White CCT:
22K, 27K, 30K, 35K, 40K
Tunable White (22K-65K) -
Static Colors:
Red, Green, Blue, Amber,
Turtle Friendly Amber -
Performance:
100 LM/W
Up To 11,338 Lumens
Over 1.1 Million CBCP -
Voltage:
120V, 208V, 220V, 240V, 277V
-
Power:
Integral Power Supply
-
Dimming:
0-10V, DMX, DALI 2
-
Weight:
28 LBS (12.7 KG)
-
Housing:
Heavy Duty A380 Die-Cast Aluminum
-
Lens:
Tempered Glass
-
FInish:
High Durability Powder Coating
-
Warranty:
5-Year Limited
-
Operating:
40° C To 50° C
-
Lumen Maintenance:
100,000 Hours
-
Certification:
ETL , CETL, IP66, IK09, IK10 Option, 3G Option,
Complies with Buy American Act
Trunnion
Tenon Adapter
Pendant
Pole Option
Extended Arm
