Prospot 17 (PS17)

  • performance projector
  • white light, tunable white
  • in production
Performance Projector Exterior Rated IP66 for exterior use

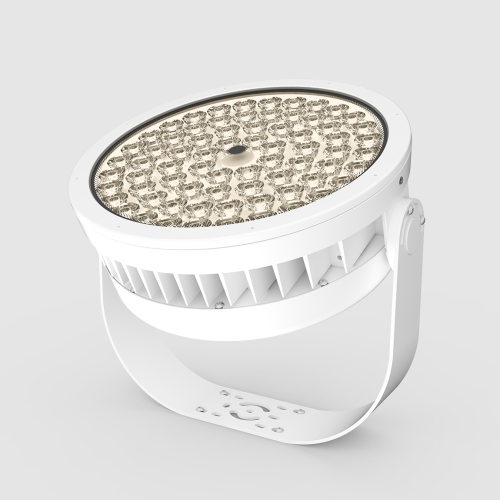

Prospot 17 (PS17) Performance Projector Prospot 17 (PS17) Performance Projector
Prospot 17 (PS17)

A high-performance projector for exterior applications.

Product Family: Projector (Prospot)

Certifications & Compliance: BAA, BABA, Turtle-Friendly
Share this product page
Facebook Twitter LinkedIn Email Pinterest

  • Output:

    150W, 225W

  • Optics:

    4°, 10°, 20°, 30°, 40°, 60°, 100°, 4°X60°, 10°X60°, 60°X10°, 20°X60°, 60°X20°, 40°X60°, 60°X40°, Wall Wash

  • CCT:

    22K, 27K, 30K, 35K, 40K
    Tunable White (22K-65K)

  • Static Colors:

    Red, Green, Blue, Amber,
    Turtle Friendly Amber

  • Horticulture:

    Lifted Full Spectrum

  • Performance:

    Up To 102 LM/W
    1,202,507 Peak Candela

  • Voltage:

    120V, 208V, 220V, 240V, 277V

  • Power:

    Integral Power Supply

  • Control:

    0-10V, DMX

  • Weight:

    56 LBS (25.4 KG)

  • Housing:

    Heavy Duty A380 Die-Cast Aluminum

  • Lens:

    Tempered Glass

  • FInish:

    High Durability Powder Coating

  • Warranty:

    5-Year Limited

  • EPA:

    Front: 1.958 FT², Side: 0.748FT²

  • Operating:

    -40° C TO 50° C

  • Lumen Maintenance:

    100,000 Hours

  • Certification:

    ETL , cETL, IP66, IK09, 3G

  • Patent:

    U.S. Patent No. D910,218 S
