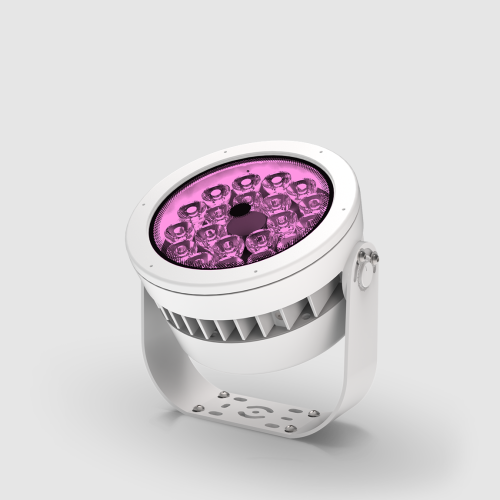

Prospot 9 (PS9)

  • color changing
  • performance projector
  • in production
Performance Projector for Exterior
Slide 7
Slide 7

White Light / Color Changing

Slide 7
Slide 7
Slide 7
Slide 7
previous arrow
next arrow

Downloads

  • Prospot 9 (PS9) Specification Sheet Prospot 9 (PS9) Specification Sheet Specification Sheet
  • Prospot 9 (PS9) Product Comparison Guide Prospot 9 (PS9) Product Comparison Guide Product Comparison Guide
  • IES Files IES Files
  • Revit Files Revit Files
  • Prospot 9 (PS9) Mounting Installation Instructions Prospot 9 (PS9) Mounting Installation Instructions Mounting Installation Instructions
  • Prospot 9 (PS9) Accessory Installation Instructions Prospot 9 (PS9) Accessory Installation Instructions Accessory Installation Instructions
  • Prospot 9 (PS9) Wiring Instructions Prospot 9 (PS9) Wiring Instructions Wiring Instructions
  • Prospot 9 (PS9) Warranty Prospot 9 (PS9) Warranty Warranty
Share this product page
Facebook Twitter LinkedIn Email Pinterest

Color-changing

Prospot 9 (PS9)

A high-performance projector for exterior applications.

Product Family: Projectors (Prospot)

  • Light Source:

    50 W,100 W

  • Optics:

    5°, 10°, 20°, 40°, 60°, 100°,

  • Horizontal Spread Lens, Optical Kit

  • CCT:

    RGBA, RGB22K, RGB27K, RGB30K, RGB35K, RGB40K, RGRYB40K , AWH (2700K-6500K)

  • Performance:

    Up To 22,070 Peak Candela

  • Voltage:

    120V or 277V

  • Power:

    Integrated Power Supply

  • Control:

    DMX 512, Fixture Resolution

  • Weight:

    15 Lbs (6.8 Kg)

  • Housing:

    Heavy Duty A380 Die-Cast Aluminum

  • EPA:

    0.483 FT²

  • Lens:

    Tempered Glass

  • Operating Temp:

    -40° C TO 50° C

  • Lumen Maintenance:

    100,000 Hours

  • Certification:

    ETL , cETL, IP66, IK09, 3G

  • Patent:

    U.S. Patent No. D910,218 S
