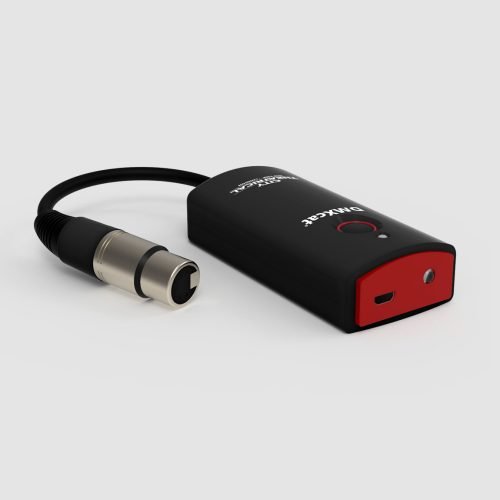

RDM Tool

  • contoller
  • addressing
  • monitor
  • Catalog No.:

    RDM

  • Received DMX Channels:

    512

  • Transmitted DMX Channels:

    512

  • Display:

    LCD, 128 X 64 Pixels

  • DMX In Port:

    5-Pin Male Connector

  • DMX Out Port:

    5-Pin Female Connector

  • DMX Ports Electrical Standard:

    ANSI E1.11 / ANSI E1.20

  • On Board SSD Memory:

    16 MB

  • Included Battery:

    9 V (Included in box)

  • Cable Tester:

    5 Pin, Open Circuit, Wrong Wiring

  • Ambient Operating Temperature:

    32° F to 113° F (0° C to 45° C)

  • Warranty:

    2 Year, Limited

  • Weight:

    0.88 LBS (400 G)

  • Dimensions:

    L 4.7" X W 2.8" X H 1.18"

  • Refresh Rate:

    5, 20, 15, 20, 25, 30, 35, 44 Frames/Second

  • USB Port:

    Micro USB, Type B, Used For Direct Power or Firmware Updates, Cable Not Included

  • Re-Charge Options:

    Rechargeable 9V Batteries are Allowed (Not Charged By RDM Tool + Not Included)
