Structure Mini Direct (SMD)

  • direct linear
  • color changing
  • in production
Direct Linear Interior

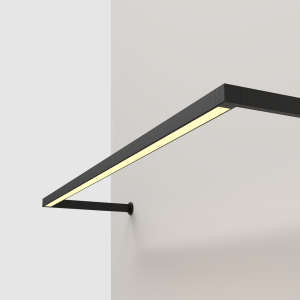

Structure Mini Direct (SMD) Direct Linear Structure Mini Direct (SMD) Direct Linear

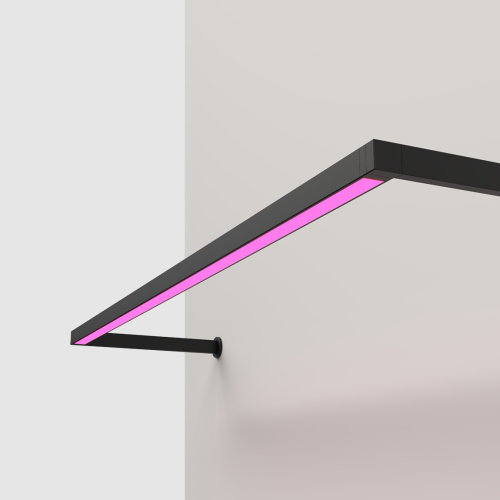

Structure Mini Direct (SMD)

The Structure Mini Direct is a compact LED linear luminaire that provides both direct and indirect, color-changing light.

Product Family: Linear (Interior)

Share this product page
Facebook Twitter LinkedIn Email Pinterest

  • Output:

    5.0 W/FT

  • Distribution:

    Diffuse Wide or Asymmetric

  • CCT:

    RGB40K

  • Voltage:

    120-277V

  • Power:

    Remote Power Supply, Integral Power Supply

  • Control:

    DMX/RDM

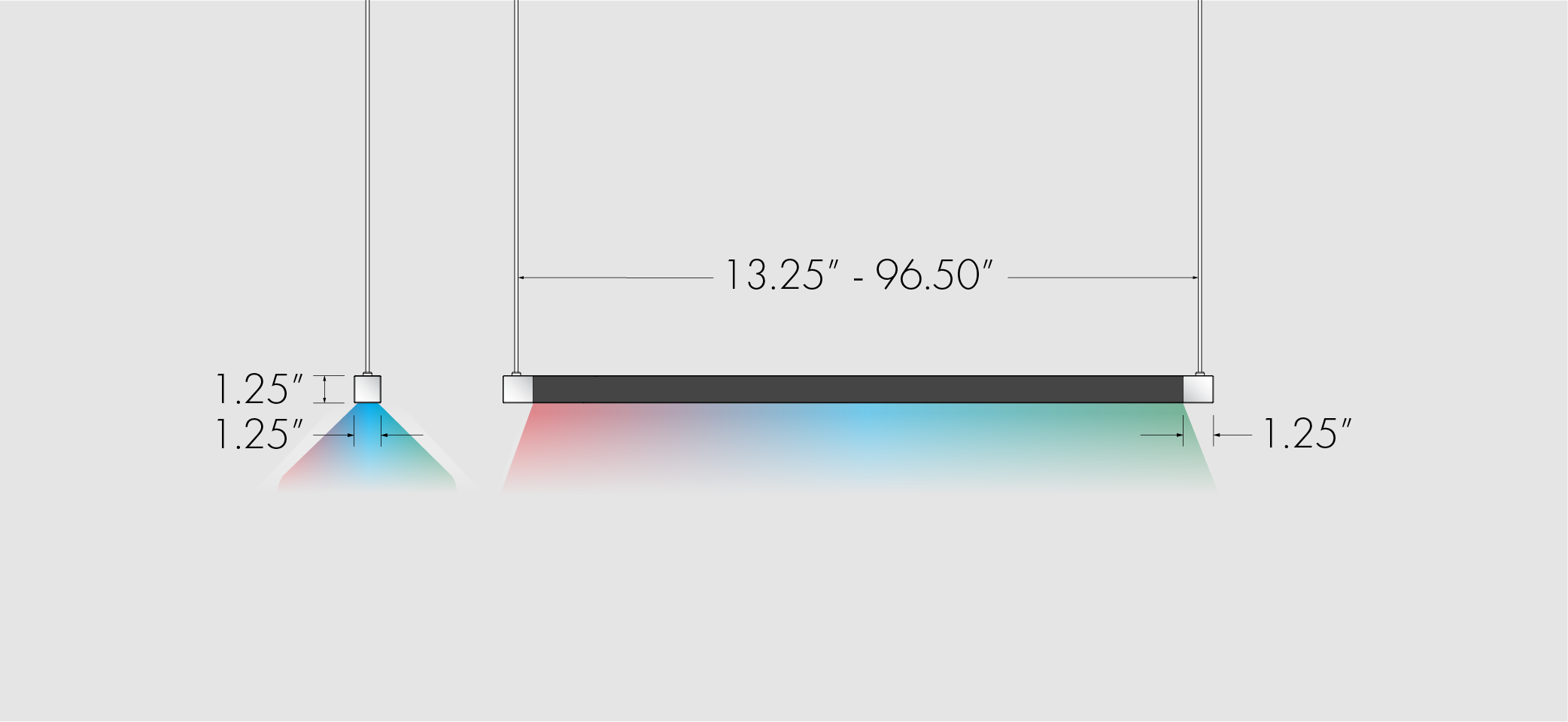

  • Lengths:

    12" - 96", Continuous Runs

  • Weight:

    1.4 LBS/FT

  • Housing:

    Precision Extruded Aluminum

  • Mounting:

    Suspension and Surface

  • Finish:

    High Durability Powder Coating

  • Warranty:

    5-Year Limited

  • Certification:

    ETL and cETL Dry Location

  • Patent:

    U.S. Design Patent No. D876,700

    Structure Mini Direct (SMD) Downloads

    Specification Sheets

    Structure Mini Direct Color Changing Specification |
    Preview Preview Specification Sheet | Download Download Specification Sheet

    Installation Instructions

    Structure Mini Direct Installation Instructions |
    Preview Preview Installation Instructions | Download Download Installation Instructions
    Structure Mini Shapes Installation Instructions |
    Preview Preview Installation Instructions | Download Download Installation Instructions

    Wiring Instructions

    Structure Mini Direct Color Changing Wiring Instructions |
    Preview Preview Wiring Instructions | Download Download Wiring Instructions

    White Papers

    DMX Wiring White Paper |
    Preview Preview White Paper | Download Download White Paper

    Warranty

    Standard Warranty |
    Preview Preview Warranty | Download Download Warranty
