Structure Mini Direct-Indirect (SMDI)

  • white light
  • in production
Direct/Indirect Linear for Interior

Downloads

  • Structure Mini Direct-Indirect (SMDI) Specification Sheet Structure Mini Direct-Indirect (SMDI) Specification Sheet Specification Sheet
  • IES Files IES Files
  • Structure Mini Direct-Indirect (SMDI) Installation Instructions Structure Mini Direct-Indirect (SMDI) Installation Instructions Installation Instructions
  • Structure Mini Direct-Indirect (SMDI) Wiring Instructions Structure Mini Direct-Indirect (SMDI) Wiring Instructions Wiring Instructions
  • Structure Mini Direct-Indirect (SMDI) Warranty Structure Mini Direct-Indirect (SMDI) Warranty Warranty
Share this product page
Facebook Twitter LinkedIn Email Pinterest

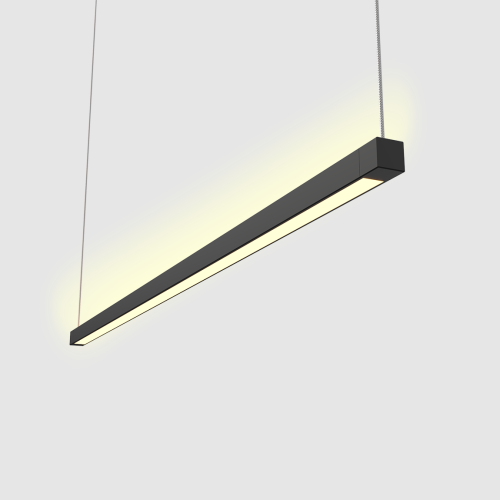

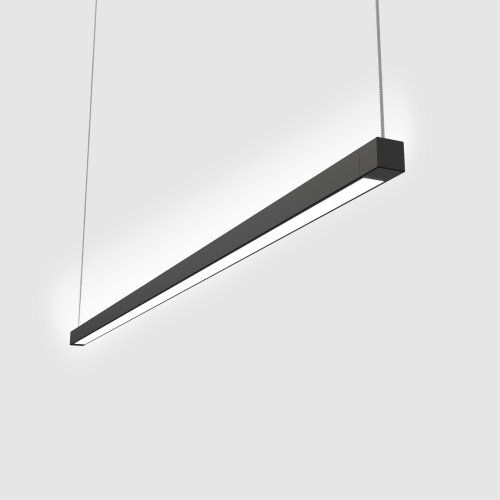

Structure Mini Direct-Indirect (SMDI)

A high performance linear fixture for interior applications.

  • Light Source:

    High Performance LEDs

  • Output:

    4.0 W/FT, 8.0 W/FT In Each Direction

  • Direct Distribution:

    Diffuse Wide or Asymmetric

  • Indirect Distribution:

    Batwing

  • CCT:

    2700K, 3000K, 3500K, 4000K

  • CRI:

    82 CRI (Optional 90 CRI)

  • Voltage:

    120-277V

  • Power Supply:

    Remote (Optional Integral)

  • Lengths:

    48", 72", 96", Continuous Runs

  • Weight:

    0.75 LBS/FT

  • Housing:

    Precision Extruded Aluminum

  • Mounting:

    Powered Suspension Cables

  • Finish:

    High Durability Powder Coating

  • Warranty:

    5-Year Limited

  • Certification:

    ETL and cETL Dry Location
