Structure Plus (STP)

  • linear direct/indirect
  • color changing
Linear Direct/Indirect for Interior
Slide 7

Structure Plus

Structure Plus Linear Lighting

Structure Slim and Plus Comparison Video
PlayPlay
STP_App_3
Slide White

Structure Plus Linear Lighting

STP_App_1
Slide White

Structure Plus Linear Lighting

STP_App_2
previous arrow
next arrow

Downloads

  • Structure Plus (STP) Specification Sheet Structure Plus (STP) Specification Sheet Specification Sheet
  • IES Files IES Files
  • Structure Plus (STP) Installation Instructions Structure Plus (STP) Installation Instructions Installation Instructions
  • Structure Plus (STP) Wiring Instructions Structure Plus (STP) Wiring Instructions Wiring Instructions
  • Structure Plus (STP) Warranty Structure Plus (STP) Warranty Warranty
Share this product page
Facebook Twitter LinkedIn Email Pinterest

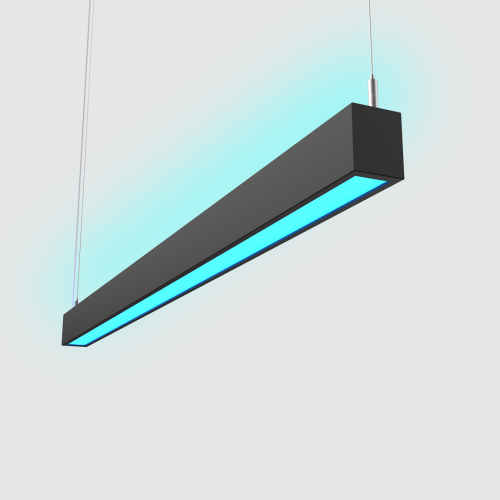

Structure Plus (STP)

Linear Direct/Indirect

Product Family: Linear (Structure)

  • Light Source:

    10.0W/Ft

  • Direct Distribution:

    Direct Diffuse Wide

  • Indirect Distribution:

    Batwing

  • CCTs:

    RGB40K, Active White

  • Performance:

    Up to 30.7 LM/W

  • Voltage:

    120V or 277V

  • Power:

    Integral

  • Control:

    DMX/RDM

  • Dimensions:

    2.25" X 2.75"

  • Lengths:

    24" - 96", Continuous Runs

  • Housing:

    Precision Extruded Aluminum

  • Lens:

    High Density Acrylic

  • Finish:

    High Durability Powder Coating

  • Warranty:

    5-Year Limited

  • Certification:

    ETL and cETL for Dry Location
