Structure Slim (STS)

  • linear direct/indirect
  • white light
Linear Direct/Indirect for Interior
Slide 7

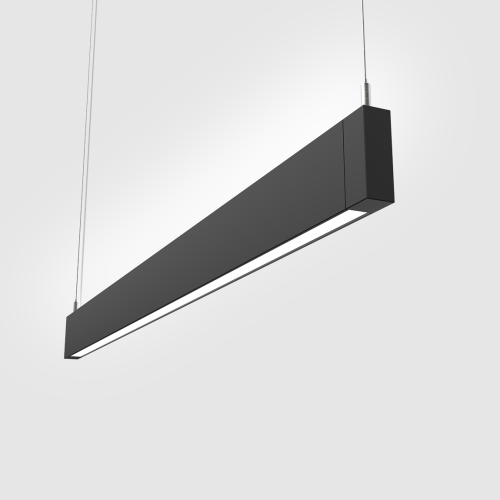

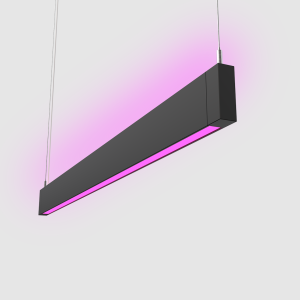

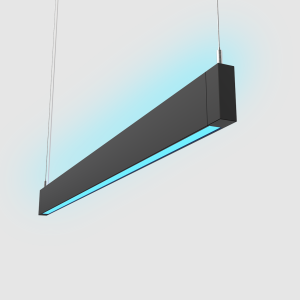

Structure Slim Linear Direct/Indirect

Structure Slim and Plus Comparison Video
PlayPlay
Slide White
Slide White

10 Watts per foot

Slide
previous arrow
next arrow

Downloads

  • Structure Slim (STS) Specification Sheet Structure Slim (STS) Specification Sheet Specification Sheet
  • IES Files IES Files
  • Structure Slim (STS) Installation Instructions Structure Slim (STS) Installation Instructions Installation Instructions
  • Structure Slim (STS) Wiring Instructions Structure Slim (STS) Wiring Instructions Wiring Instructions
  • Structure Slim (STS) Warranty Structure Slim (STS) Warranty Warranty
Share this product page
Facebook Twitter LinkedIn Email Pinterest
Structure Slim (STS)

Linear direct/indirect lighting for interior

Product Family: Linear (Structure)

  • Light Source:

    8.0 W/Ft, 16.0W/ft

  • Direct Distribution:

    Diffuse Wide

  • Indirect Distribution:

    Batwing

  • CCTs:

    27K, 30K, 35K, 40K

  • Performance:

    Up to 103.5 LM/W

  • Voltage:

    120V or 277V

  • Power Supply:

    Integral

  • Control:

    0-10V, DMX Dimming, Lutron

  • Dimensions:

    1.25" X 3.75"

  • Lengths:

    48" - 96", Continuous Runs

  • Housing:

    Precision Extruded Aluminum

  • Lens:

    High Density Acrylic

  • Finish:

    High Durability Powder Coating

  • Warranty:

    5-Year Limited

  • Certification:

    ETL and cETL for Dry Location
