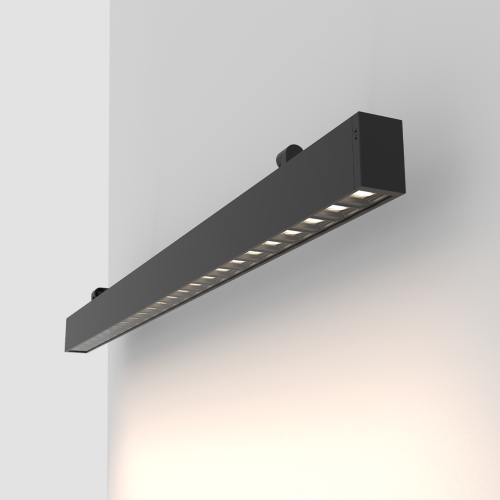

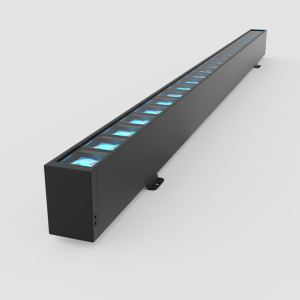

Structure Graze (MI)
The Structure Graze (MI) is a high-performance optic driven linear fixtures for interior applications.
Product Family: Linear (Interior)
Share this product page
-
Output:
3.5 W/Ft, 9.0 W/Ft, 15.0 W/Ft
-
Optics:
7°X60°, 10°X10°, 10°X60°, 10°X90°, 20°X20°, 20°X60°, 20°X90°, 40°X40°, 40°X60°, 40°90°, 60°X60°, 60°X90°, 80°X80°, 90°X90°, Asymmetric
-
CCT's:
22K, 27K, 30K, 35K, 40K
Tunable White (22K-65K) -
Static Colors:
Red, Green, Blue, Amber
-
Performance:
Up To 117,530 Peak Candela
-
Voltage:
120V or 277V
-
Power:
Integral Power Supply, Remote Power Supply Option
-
Control:
0-10V, DMX, Lutron Hi-Lume
-
Dimensions:
2.25" X 2.75"
-
Lengths:
12", 24", 36", 48", 72", 96", Continuous Runs
-
Housing:
Precision Extruded Aluminum
-
Lens:
High Performance Acrylic
-
Finish:
High Durability Powder Coating
-
Operating Temp:
-20° C To 40° C
-
Warranty:
5-Year Limited
-
Lumen Maintenance:
L70 @75,000 Hours
-
Certification:
ETL and cETL for Dry Location
Fixed Mount

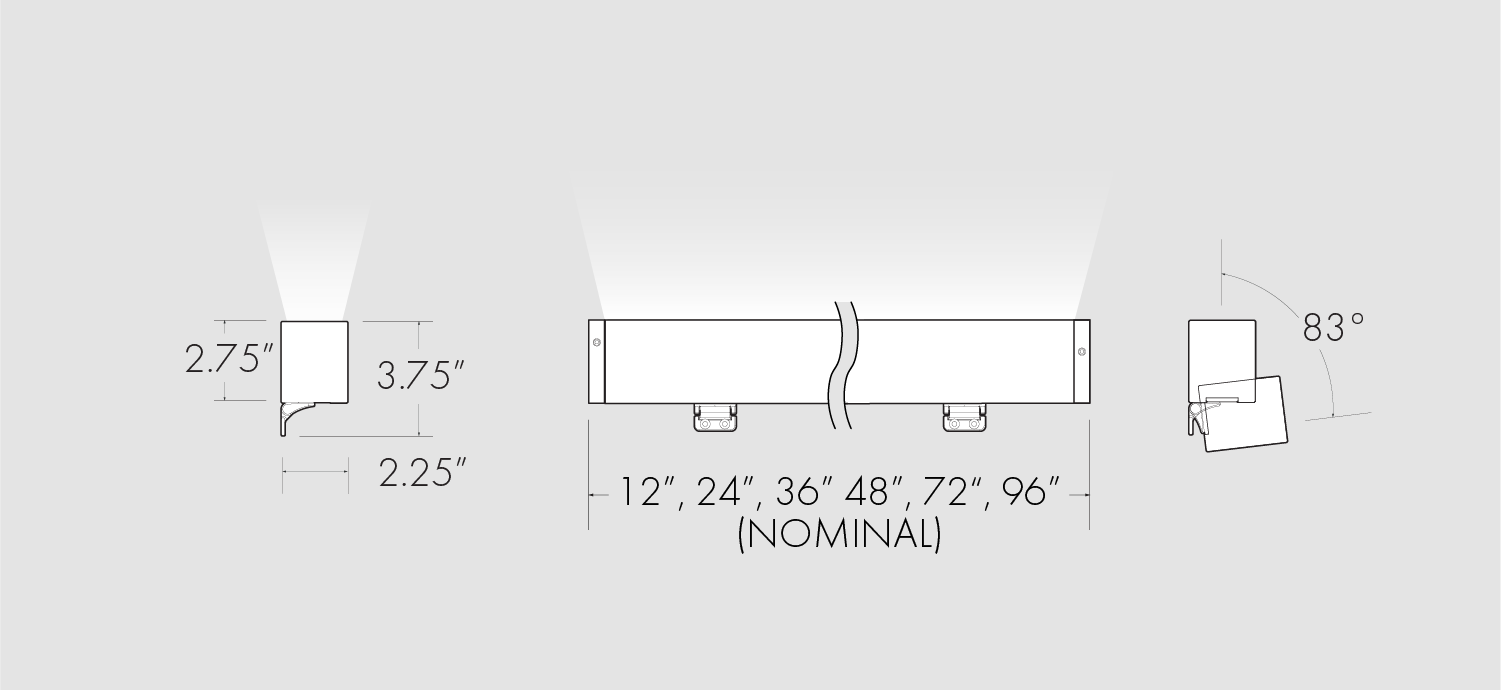

Hinge Mount

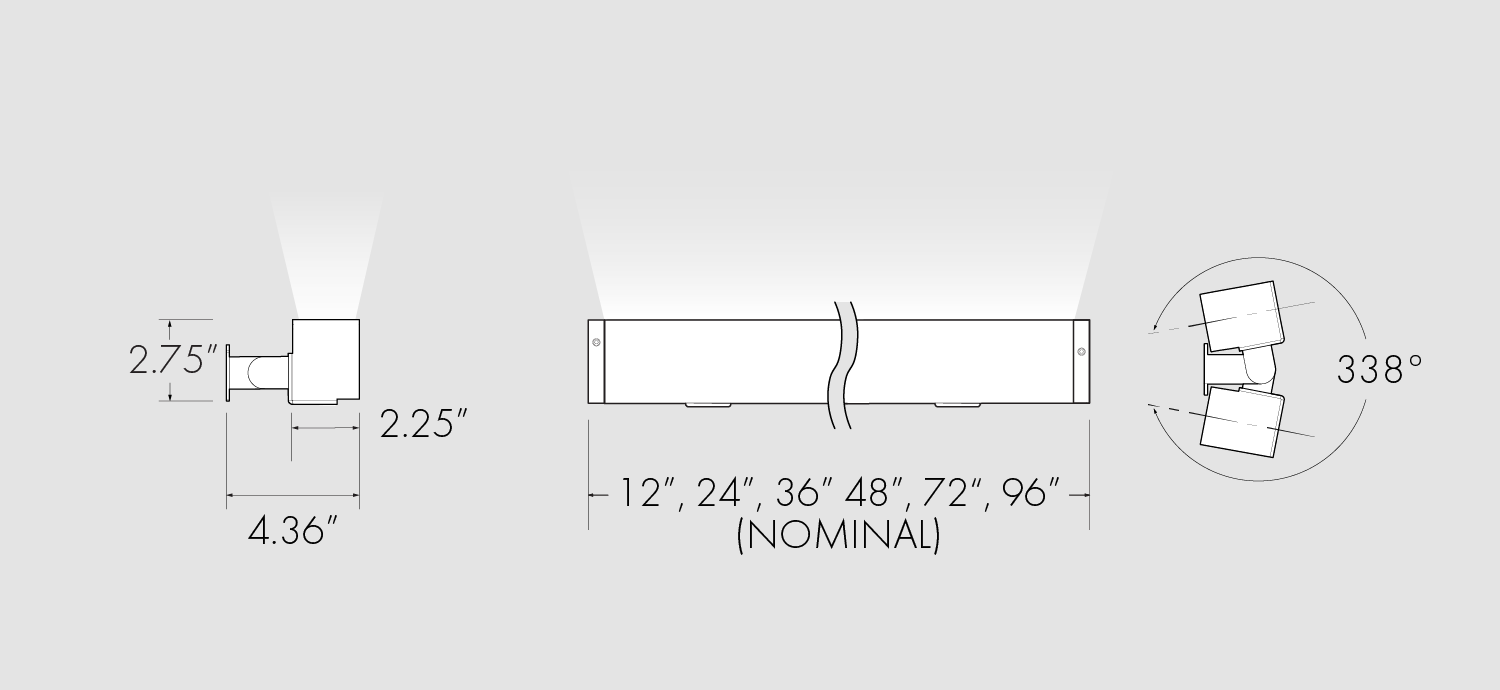

Surface Mount Back

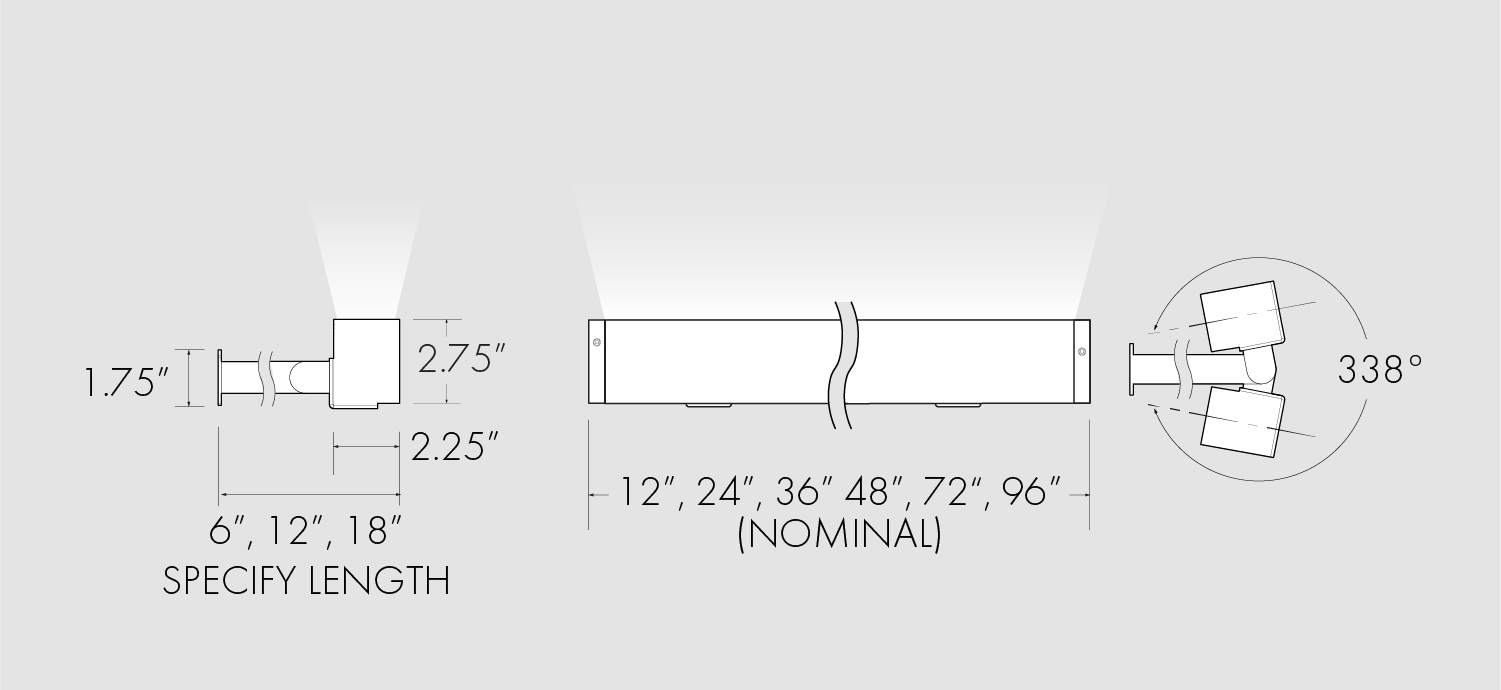

Extended Arm Back Mount

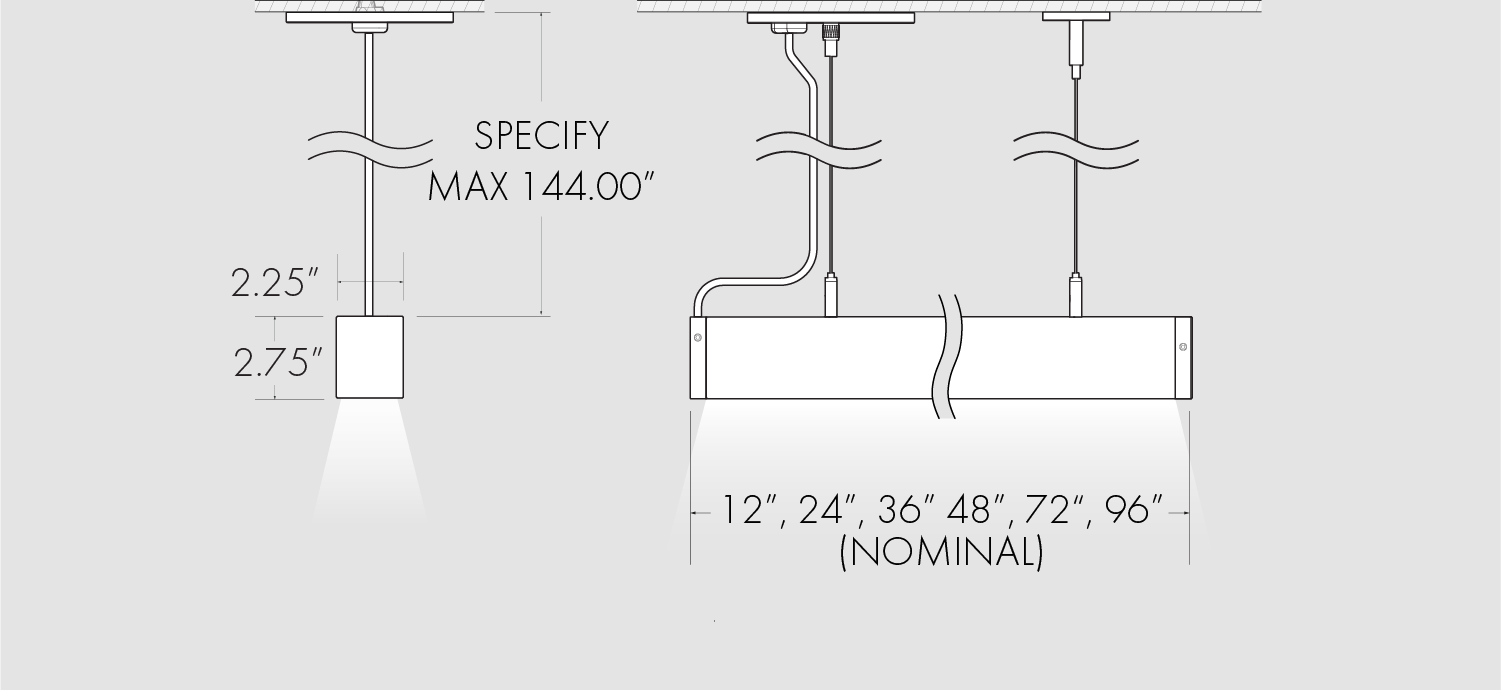

Aircraft Cable Mount

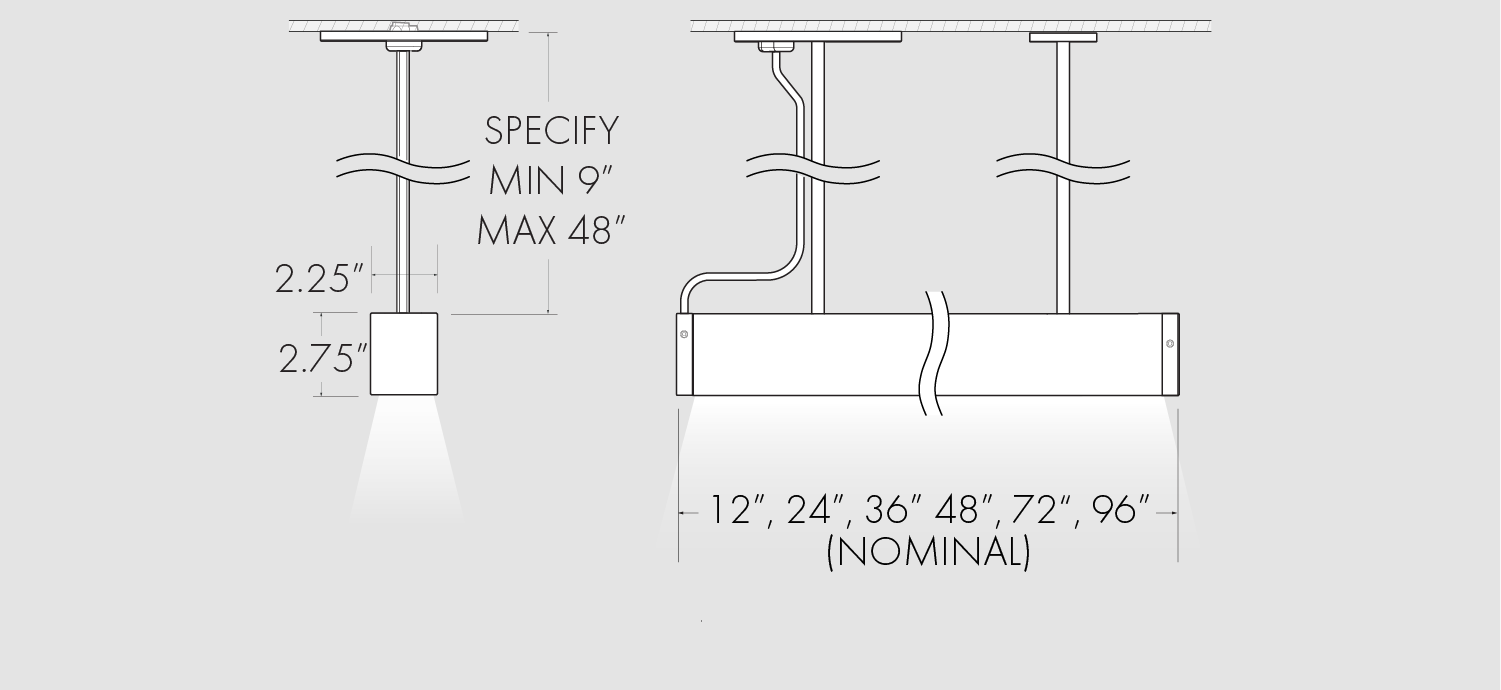

Pendant Mount
Structure Graze (MI) Downloads
Specification Sheets
Structure Graze White Light Specification Sheet
|
Preview Specification Sheet
Download Specification Sheet
Structure Graze Tunable White Light Specification Sheet
|
Installation Instructions
Structure Graze Installation Instructions
|
Wiring Instructions
Structure Graze White Light Wiring Instructions
|
IES Files
Medley Interior White Light IES Files
|
Warranty
Standard Warranty
|
Related Products
Related Projects

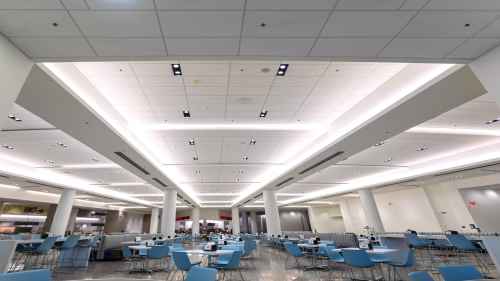

Las Vegas Convention Center
Las Vegas, NV

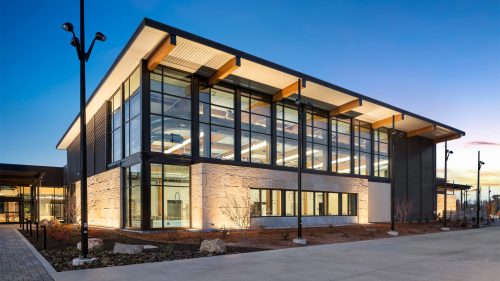

The Idaho Outdoor Fieldhouse
Boise, ID

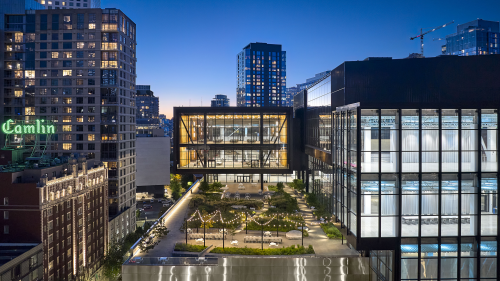

Seattle Convention Center
Seattle, WA

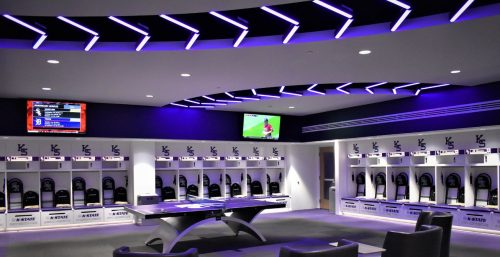

Kansas State Baseball
