Prospot Ingrade Large
A high-performance in-grade projector.
Powered by Nitro Color.
Product Family: Projector (Prospot)
Share this product page
-
Output:
Standard Output (20W)
-
Distribution:
20°X20°, 30°X30°, 40°X40°, Wall Wash, HSL (27°X65°)
-
CCT:
RGB22K-RGB40K, RGY(ROYAL BLUE)30K-40K
-
Power:
Integrated Power Supply
-
Voltage:
120VAC, 277VAC
-
Power:
Integrated Power Supply
-
Control:
DMX+RDM
-

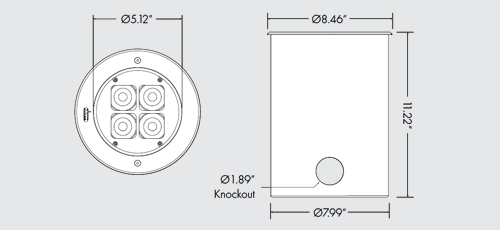

Dimensions:
Ø 8.46"
-
Housing:
Die-cast aluminum
-
Mounting:
Ingrade
-
Lens:
Clear Tempered Glass
-
Trim Finish:
Brushed Stainless Steel
-
Warranty:
5-Year Limited
-
Operating Temp:
-25° C to 50° C
-
Lumen Maintenance:
80,000 Hrs
-
Certification:
IP68, IK10
-
Note:
39.37" Deep for up to 36 hours. Not suitable for permanent submersion
-
Drive Over Rating:
Walk/drive over compliant up to 6000 lbs in concrete pour
